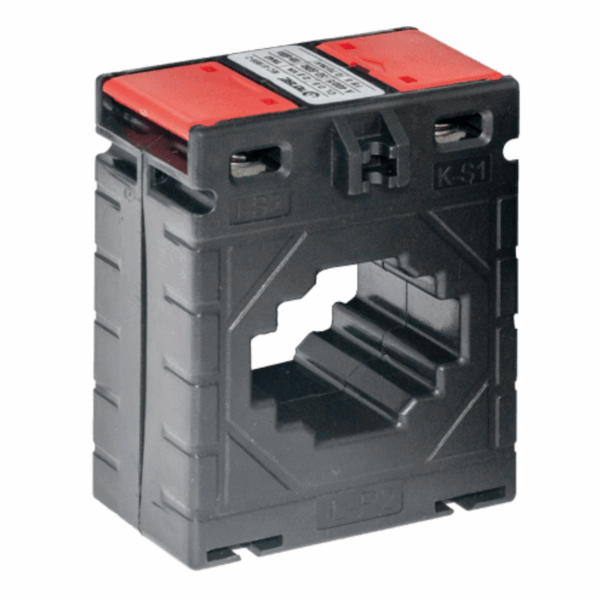

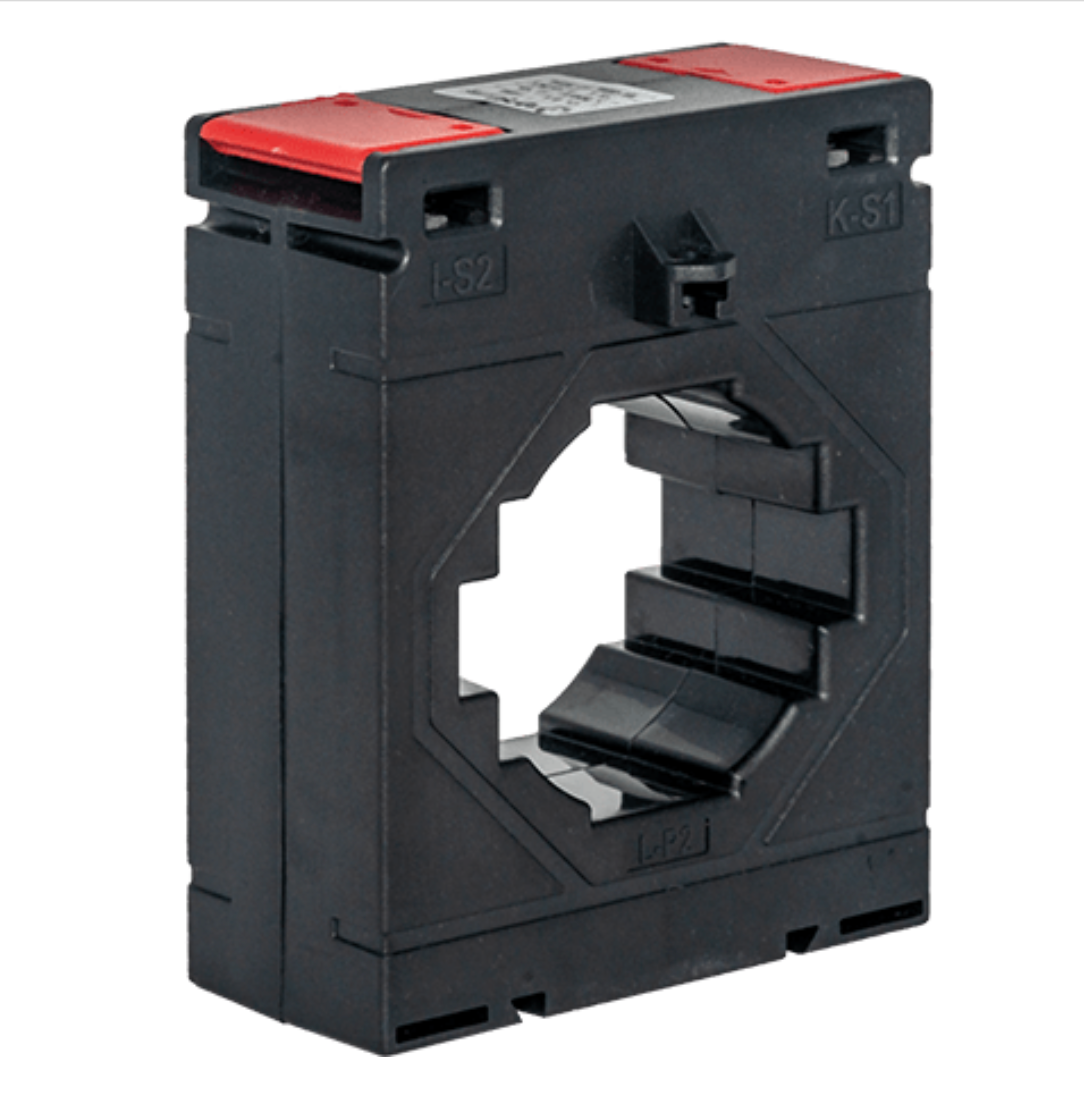

TK80 – Current measuring transformer 1500/5

SKU: TK8015005310 EAN: 632556185797

1 141,00 Kč

27 in stock

Description

Slide-on measuring transformer for 1500 A primary rated currents, 5 A secondary current, 25 VA rated outputs, available in 0.5S accuracy class.

Slip-on current transformer for indirect measurement of sinusoidal AC currents.

Mounting of the transformer is either by means of mounting feet, which are included.

Technical data

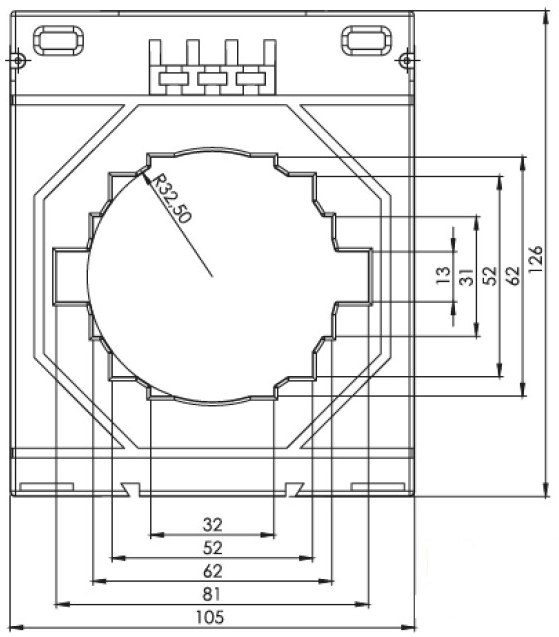

Primary current: 800…2000 A
Primary conductor Ø: max. 65 mm
Primary strip 1: 62 x 32 mm
Primary strip 2: 52 x 52 mm
Primary strip 3: 13 x 81 mm

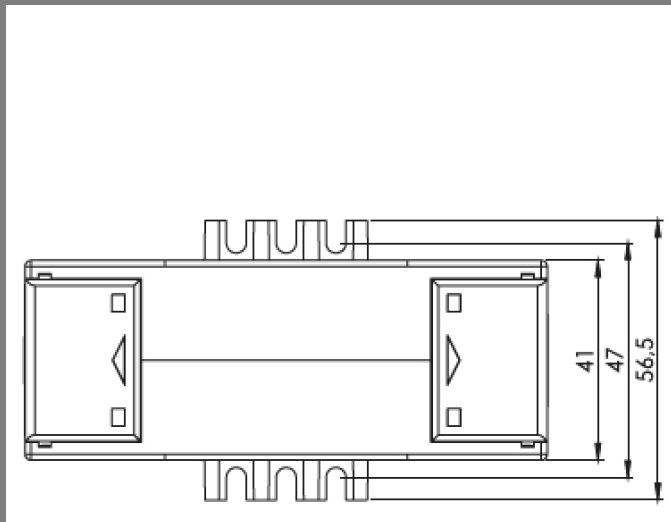

Width: 105 mm
Height: 126 mm
Depth: 56.5 mm
