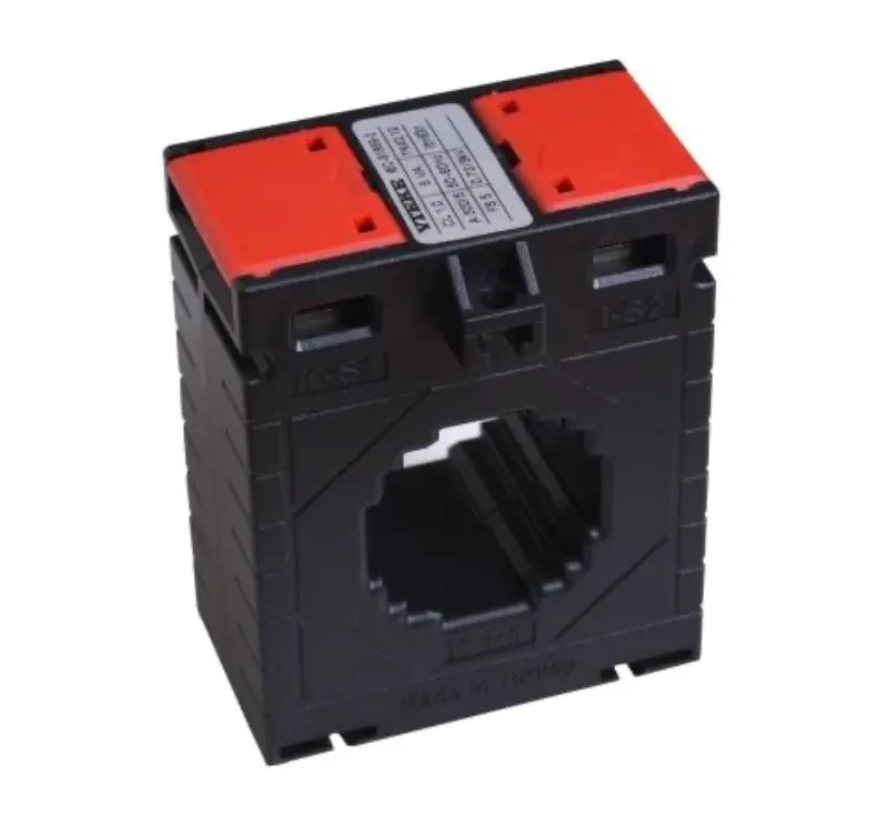

TK30 – Current measuring transformer 150/5 200/5 250/5 300/5 400/5 500/5 600/5
Price range: 434,00 Kč through 483,00 Kč
Description
Slide-on measuring transformer for primary rated currents from 150 to 600 A, secondary current 5 A, rated outputs 1 to 10 VA, available in 0.5S accuracy class.
Slip-on current transformer for indirect measurement of sinusoidal alternating currents
Mounting of the transformer is either by means of the mounting feet included in the delivery.

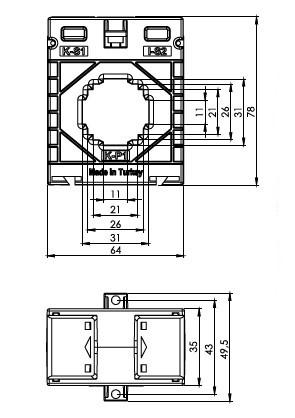

Technical data
Primary current: 150…600 A
Primary conductor Ø: max. 26 mm
Primary strip 1: 31 x 11 mm
Primary strip 2: 26 x 21 mm
Width: 64 mm
Height: 78 mm
Depth: 49.5 mm
