Time reversal reverse cyclic relay 230V AC

Description

Time reversal reverse cyclic relay – “left – right”, “up – down”, “forward – backward”

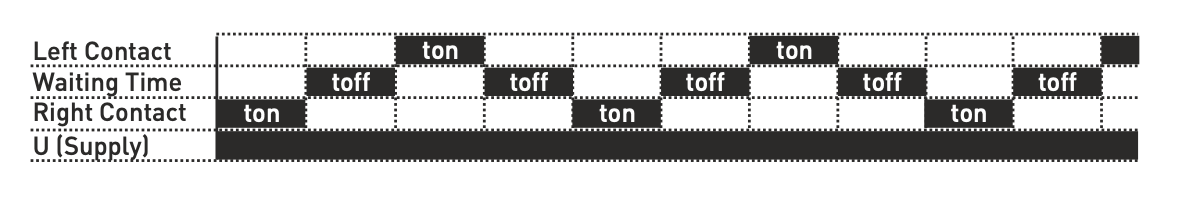

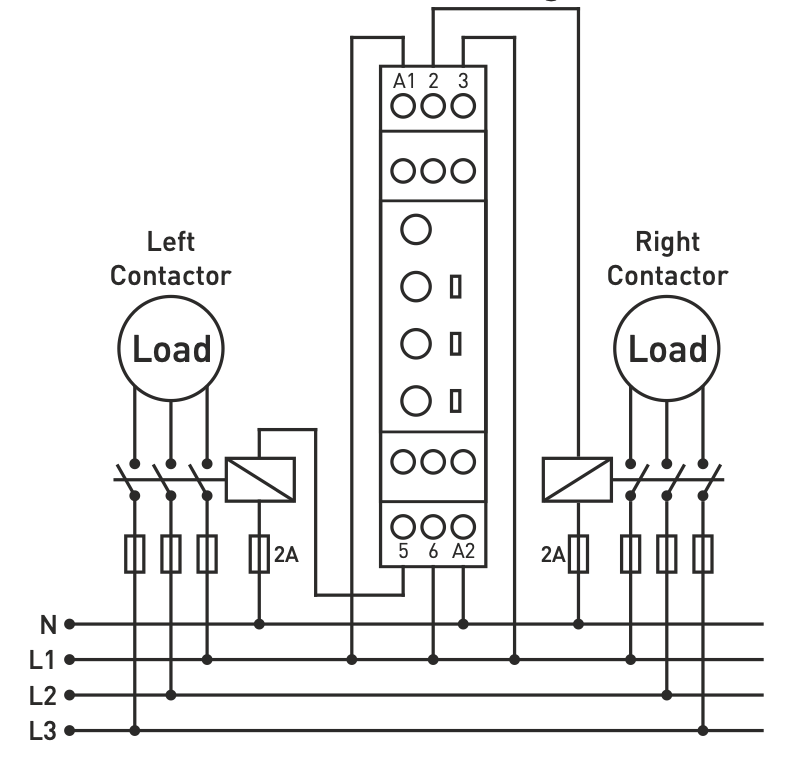

The device is designed for cycling two independent loads in “left – right”, “up – down”, “forward – reverse” modes or performing a reverse mode of operation of the electric motor with a delay between switching (dishwasher and washing machine). You can select a time between 0.1 seconds and 100 minutes for both “Ton” and “Toff” modes.

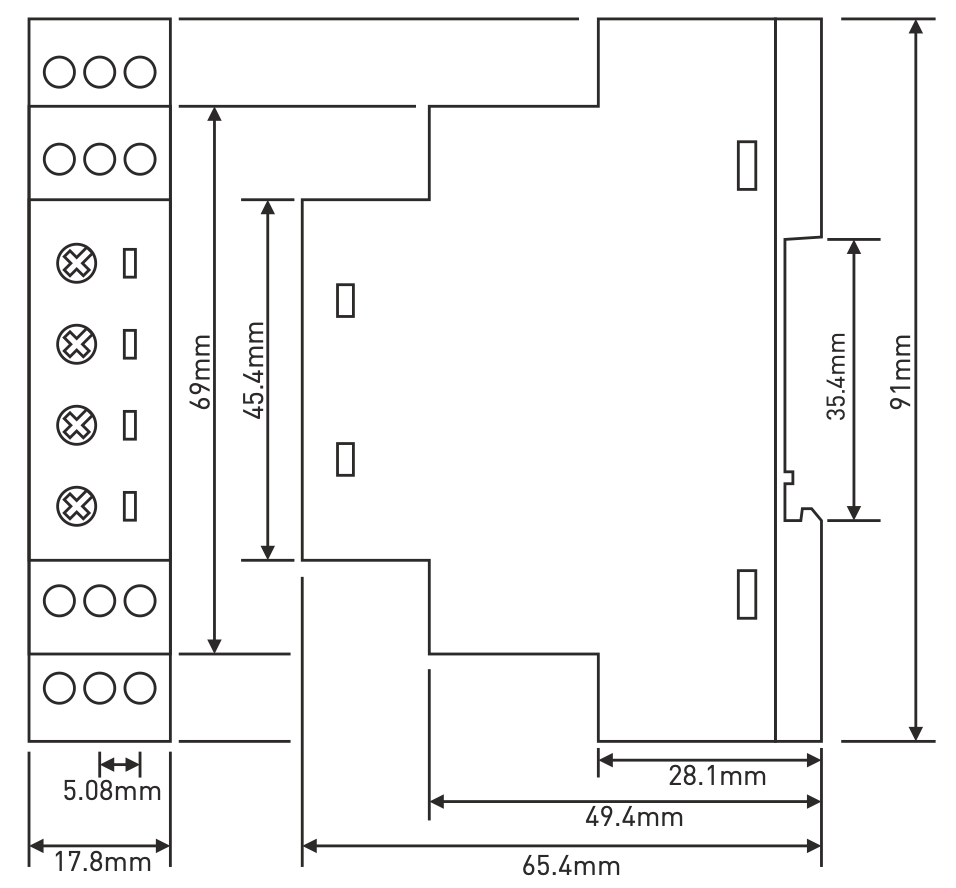

The time relay is mounted on a standard 35mm DIN rail
