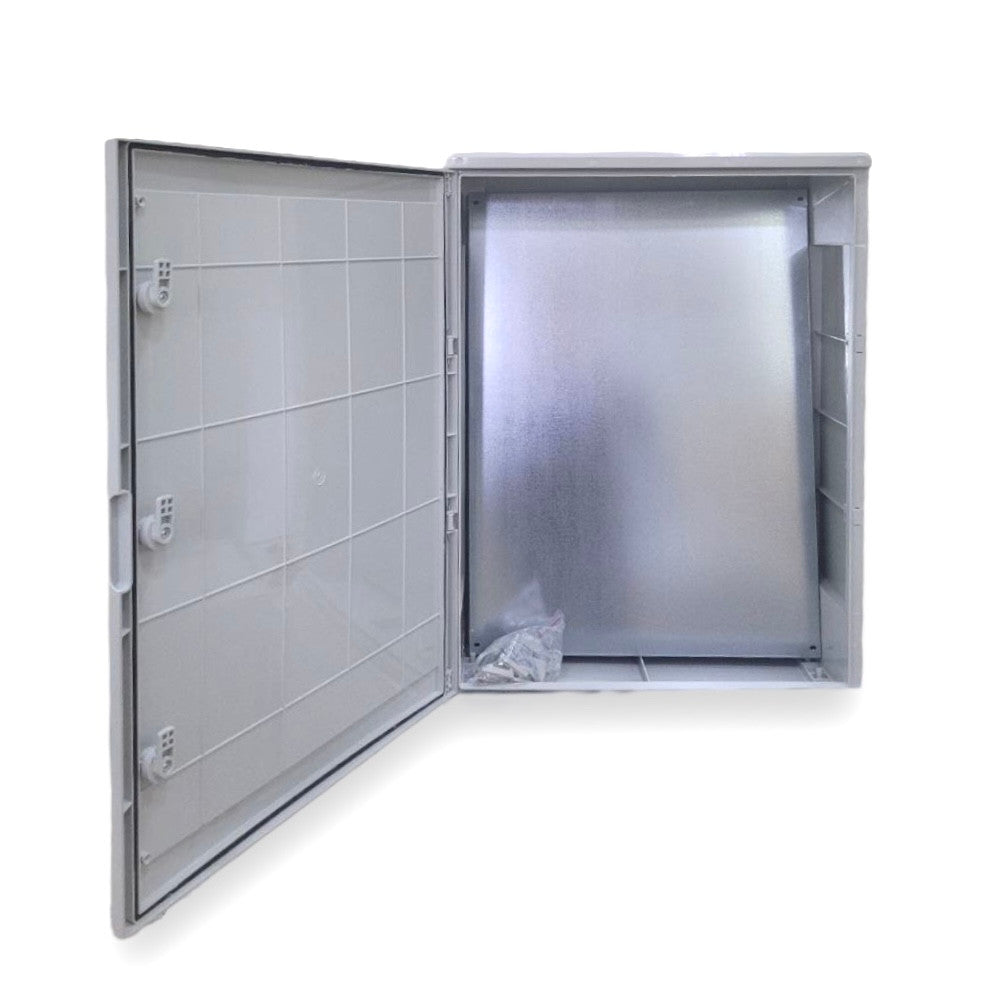

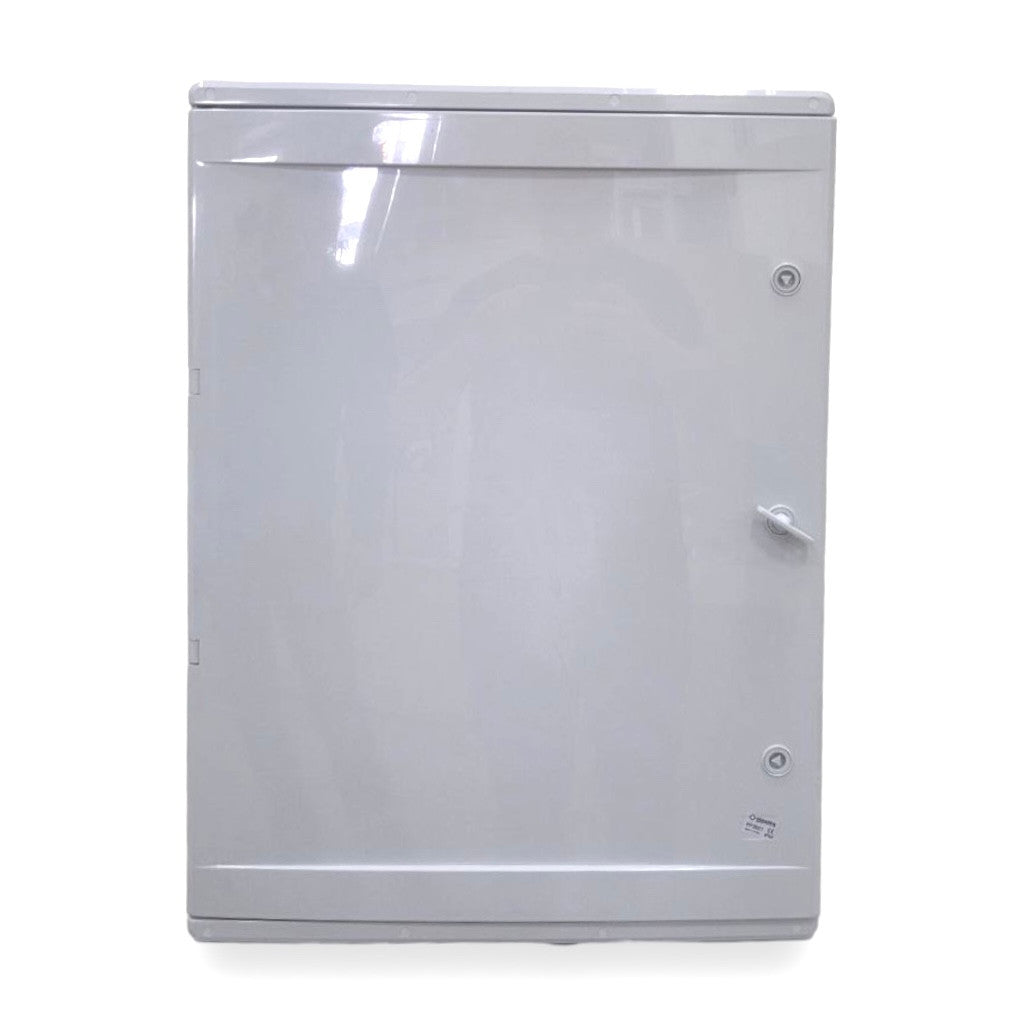

Switchboard plastic grey door 600x800x260mm IP65 PP3021 (P-BOX 6080)

Description

Plastic switchboard, grey door, seam 600x800x260mm, IP65, PP3021 Plastim / P-BOX 6080

The new plastic waterproof boxes from the Turkish company Plastim open a new page in the use of plastic protective boxes for automation and power distribution tasks.

• Reinforced panties with metal pin

• New enclosure design with corner reinforcements and increased thickness of the door and the whole product.

• Extended temperature range in which the protector retains all of its improved properties -35/+60C

• Fully corrosion resistant lightweight solid galvanized metal mounting panel
• Can be fitted with transparent doors and DIN rails reinforced metal pin panties;

MAIN TECHNICAL FEATURES

• Mounting panel: made of 1 mm thick galvanised steel
• Material.
• Width: 600 mm
• Height: 800 mm
• Depth: 260 mm
• Colour: RAL7035 light grey
• Enclosure: IP65, IK08
• Rated voltage: up to 690 V
• Maximum current: up to 800 A
• Operating temperature: -35°C + 65°C
• Weight: 13.50 kg
