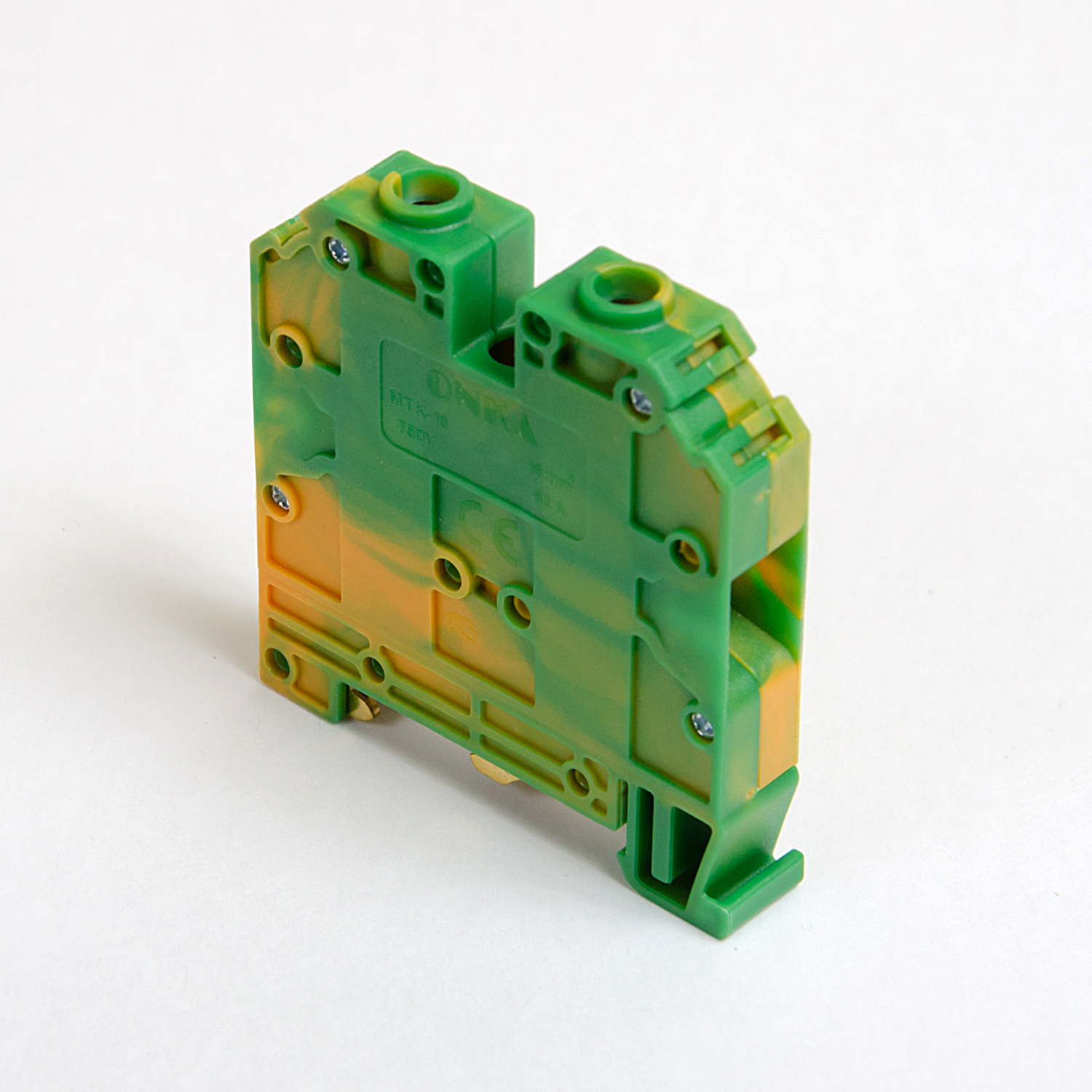

ONKA 35mm2 PE Screw rail connector terminal block DIN rail terminal 2-wire grey, 1010225

SKU: 1010225

218,00

30 in stock

Description

DIN rail 2-wire green-yellow, ONKA, made in Turkey

ONKA’s compact rail installation connectors provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.

Technical parameters

Cross section of the connected single wire up to: 35mm2
Colour: Green-yellow (camouflage)
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/Copper
Torque: 1.2 Nm
Connection position: lateral / side
Cable strip length: 16mm
Electrical connection type: screw clamp
Rated voltage: 750V
Operating temperature range: -40°C140°C
Mounting method: mounting rail DIN 35 mm
Norm: EN-60947-7-1
