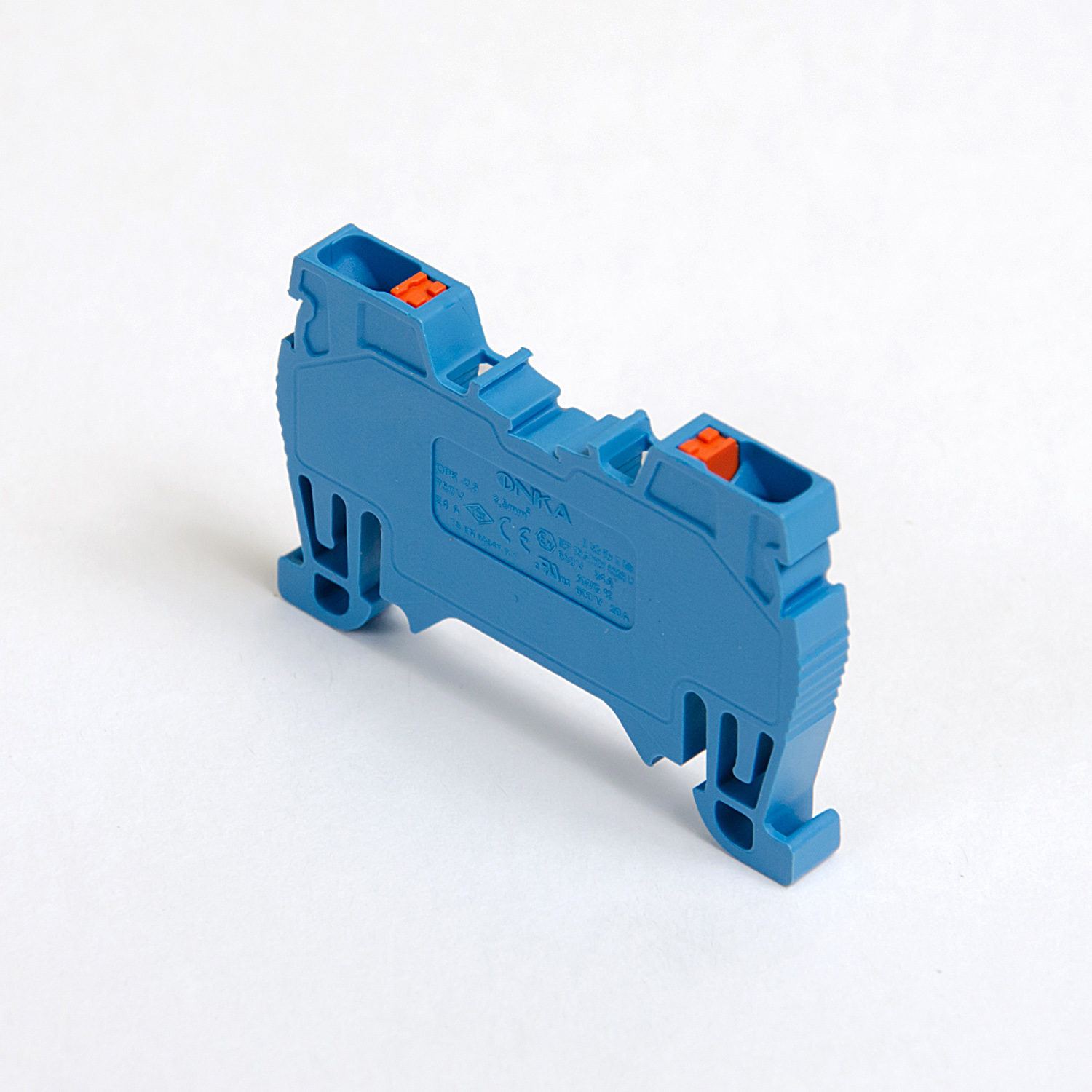

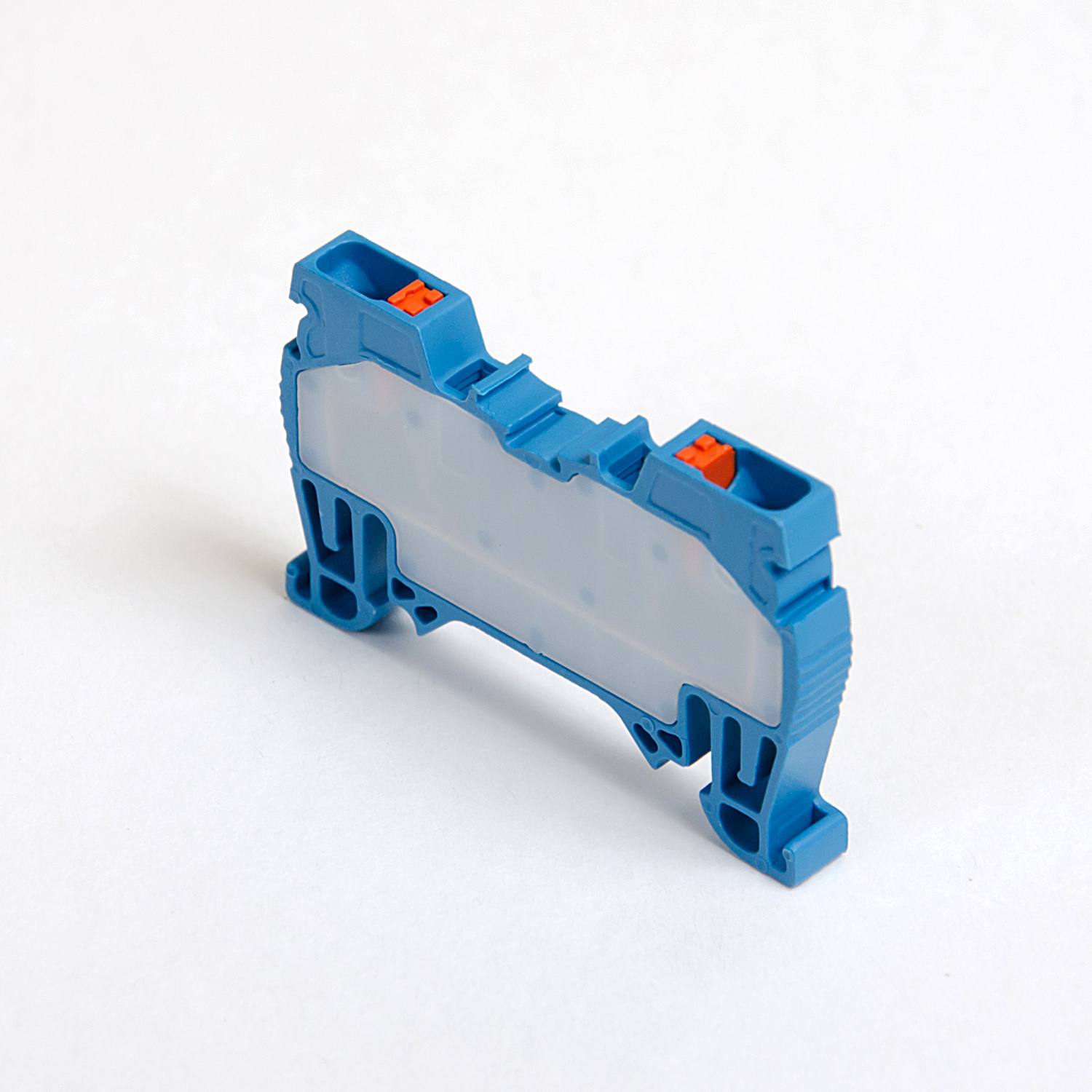

ONKA 2,5mm2 spring rail connector terminal block DIN rail terminal 2-wire grey, 1020016

Description

Spring busbar rail connector / DIN rail terminal 2-wire, retractable contact, blue, ONKA, made in Turkey.

The ONKA coupler/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made of high quality materials, the coupling guarantees long term use and resistance to mechanical damage.

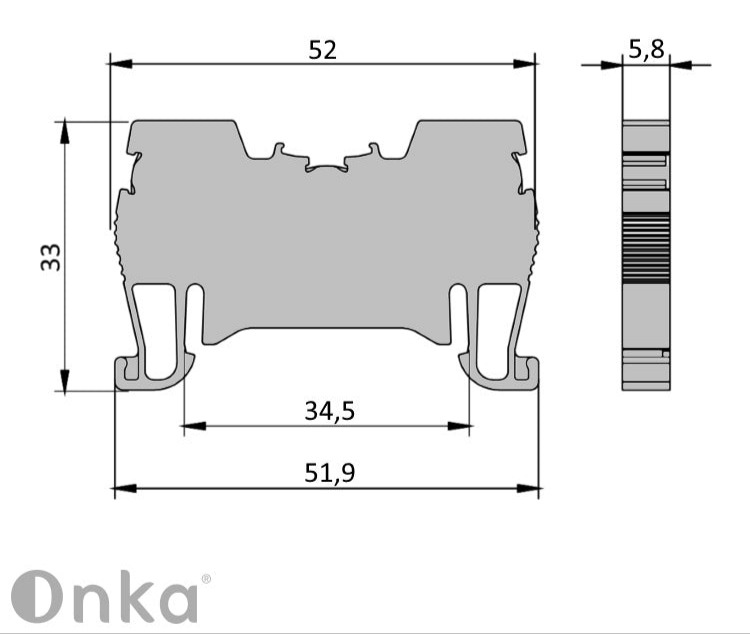

Technical parameters

Cross section of the connected single wire up to: 2.5mm2
Colour: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Cable strip length: 9mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 24A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
