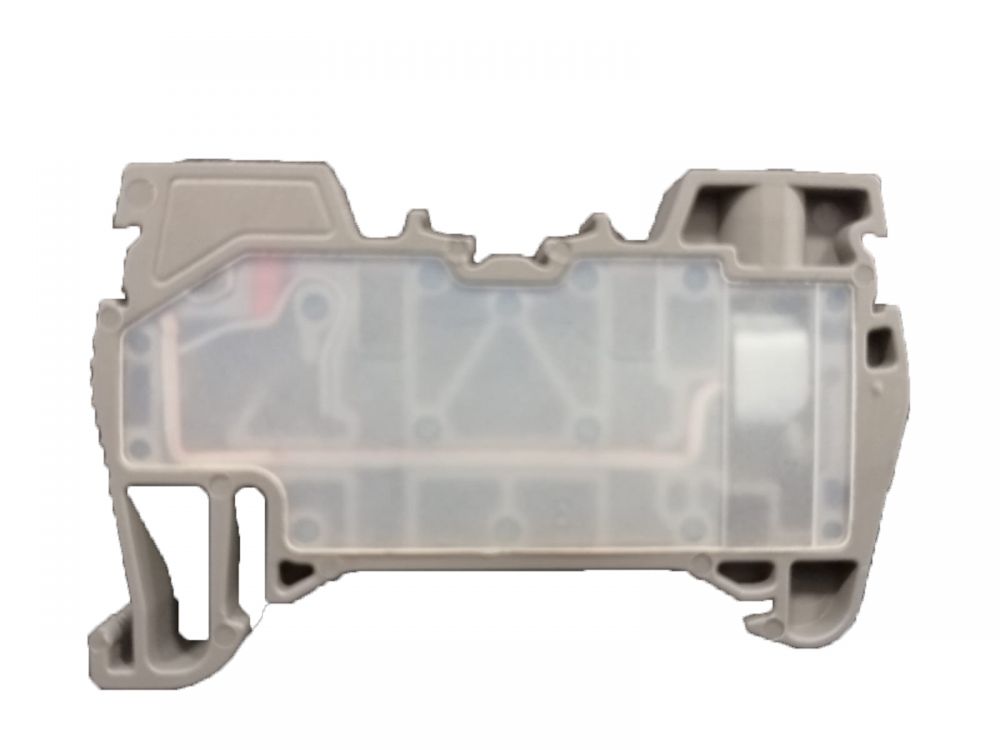

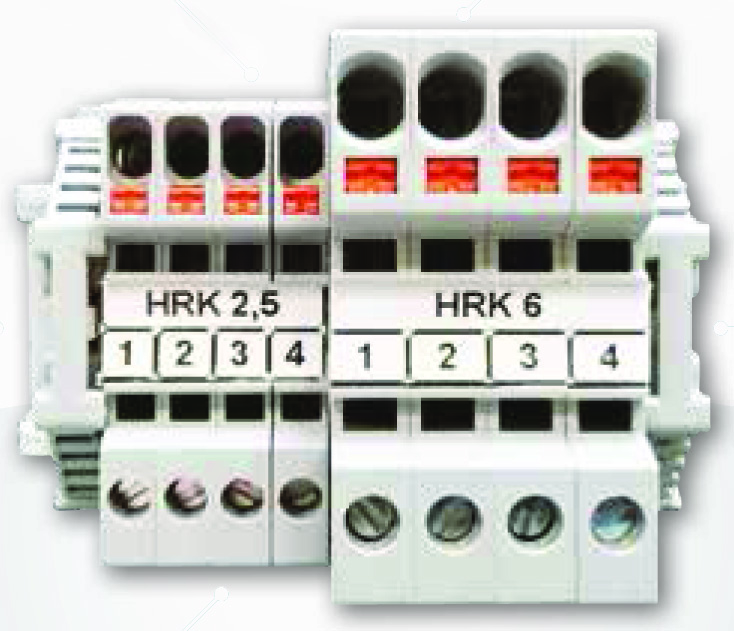

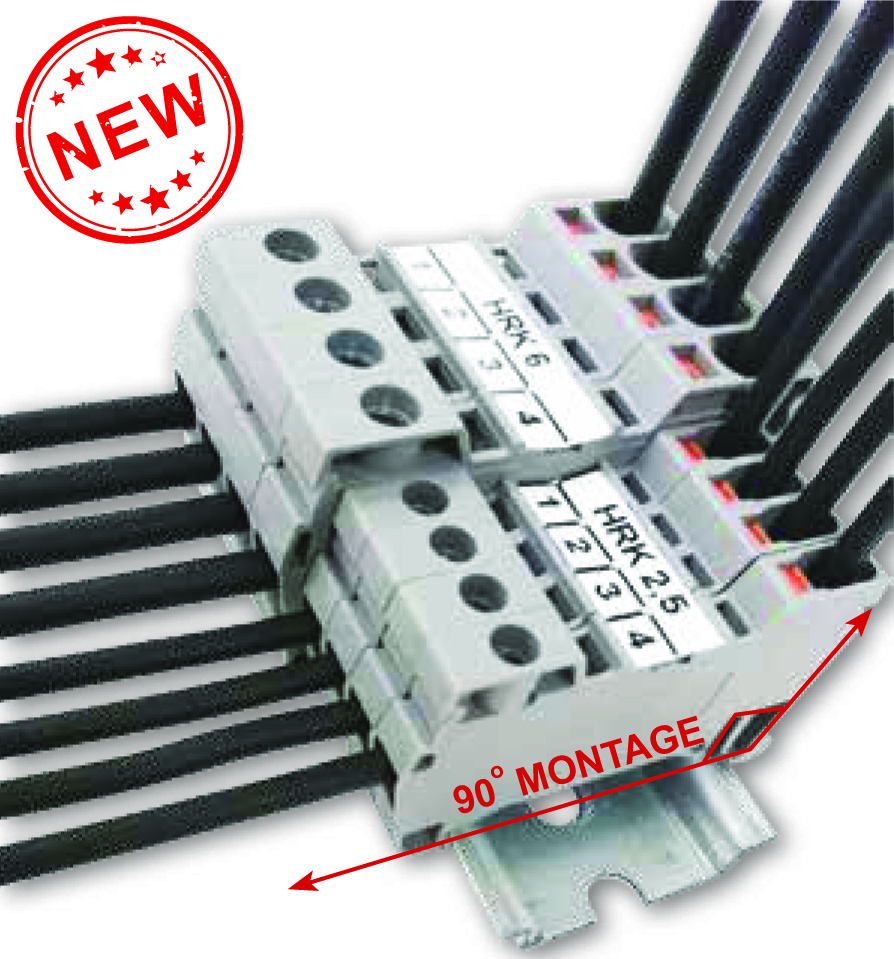

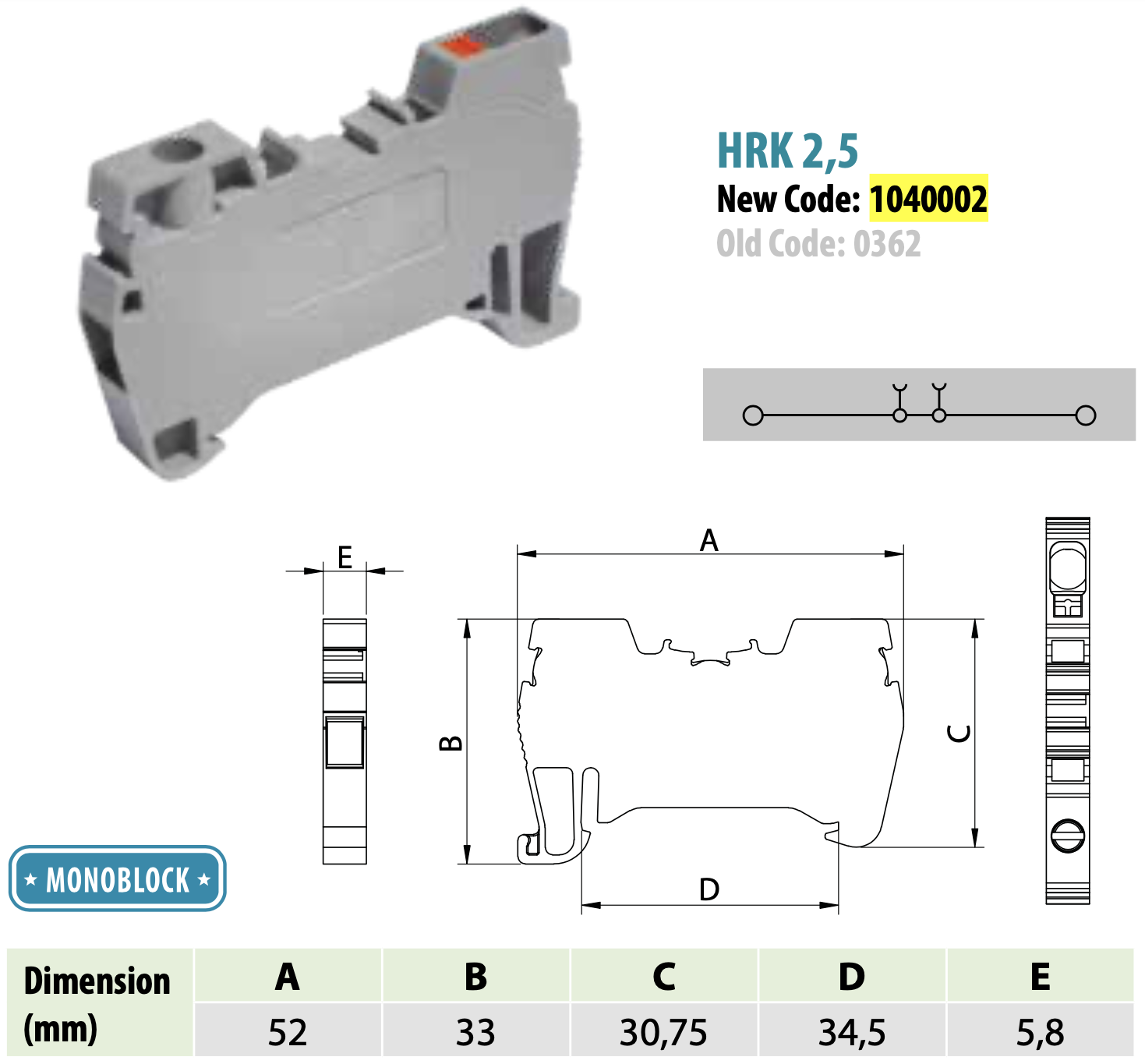

ONKA 2.5mm2 Hybrid Screw / Spring Rail Terminal Block Terminal Block DIN Rail Terminal Block 2-wire grey, 1040002

Description

Hybrid busbar rail connector / DIN rail terminal 2-wire grey, ONKA, made in Turkey

ONKA’s compact installation rail couplers provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.

Technical parameters

Cross section of the connected single wire up to: 2.5mm2
Colour: grey
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/ Stainless steel/ Copper
Torque: 0.4 Nm
Connection position: Top / Side
Cable strip length: 10mm
Electrical connection type: screw clamp / spring clamp
Rated Voltage: 750V
Rated current: 24A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
