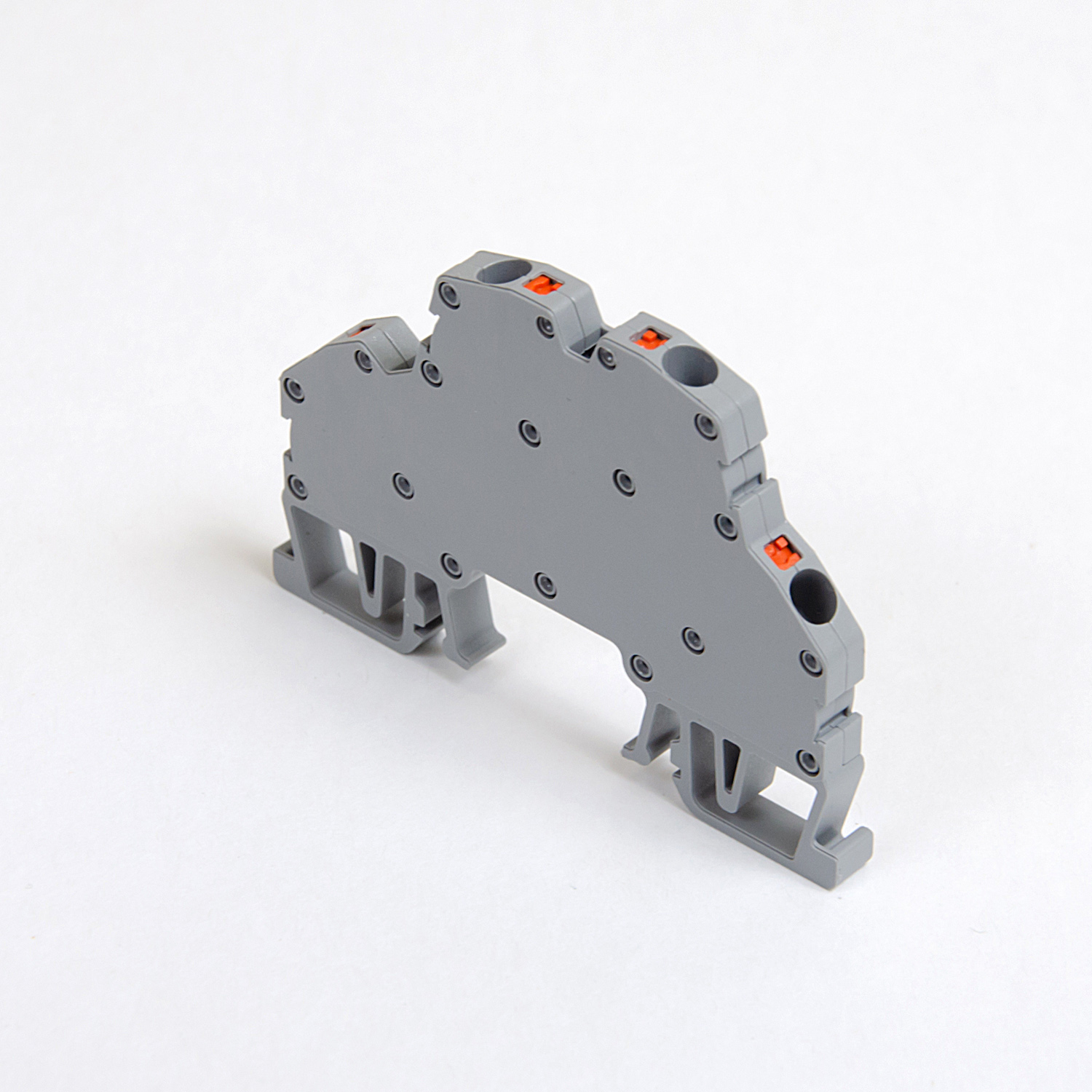

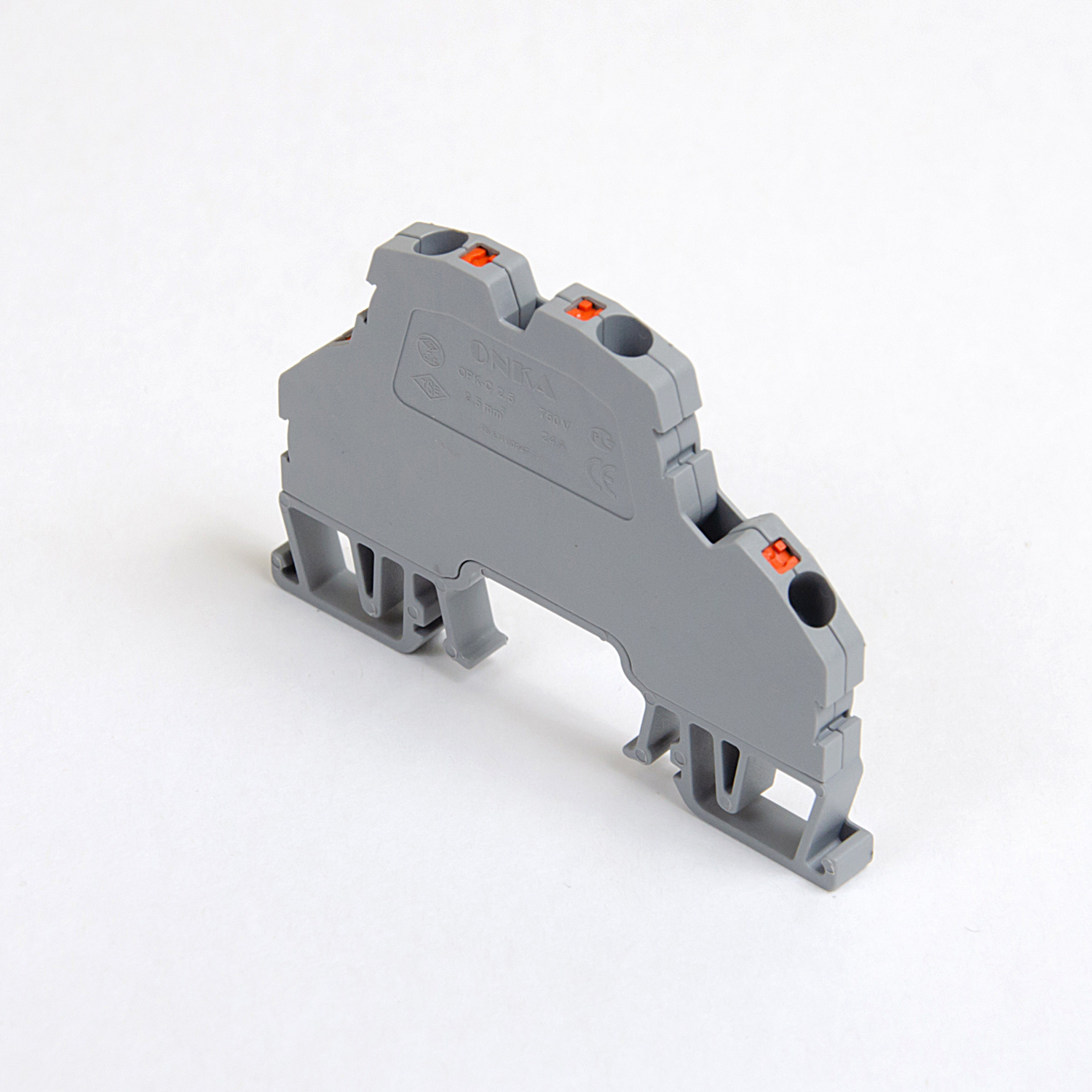

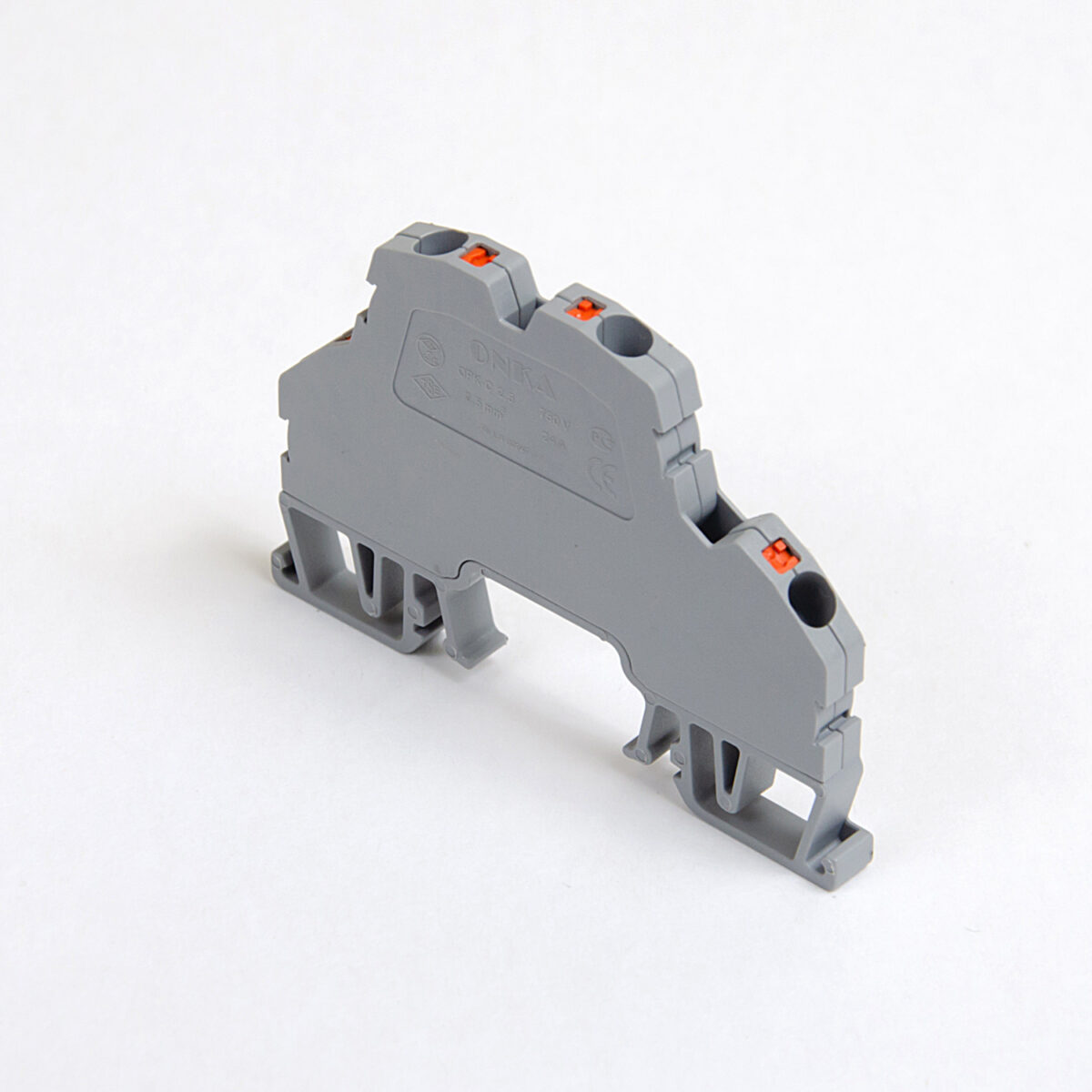

ONKA 2.5mm2, 2 tier spring rail connector terminal block DIN rail terminal block 4-wire grey, 1020379

Description

2-Pair Spring Busbar Rail Connector / DIN Rail Terminal 4-wire grey, ONKA, made in Turkey

ONKA’s compact installation rail couplers provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.

Technical parameters

Cross section of the connected single wire up to: 2.5mm2
Colour: grey
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/Copper
Connection position: Top / top
Cable strip length: 9mm
Electrical connection type: spring clamp
Rated voltage: 750V
Rated current: 25A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
