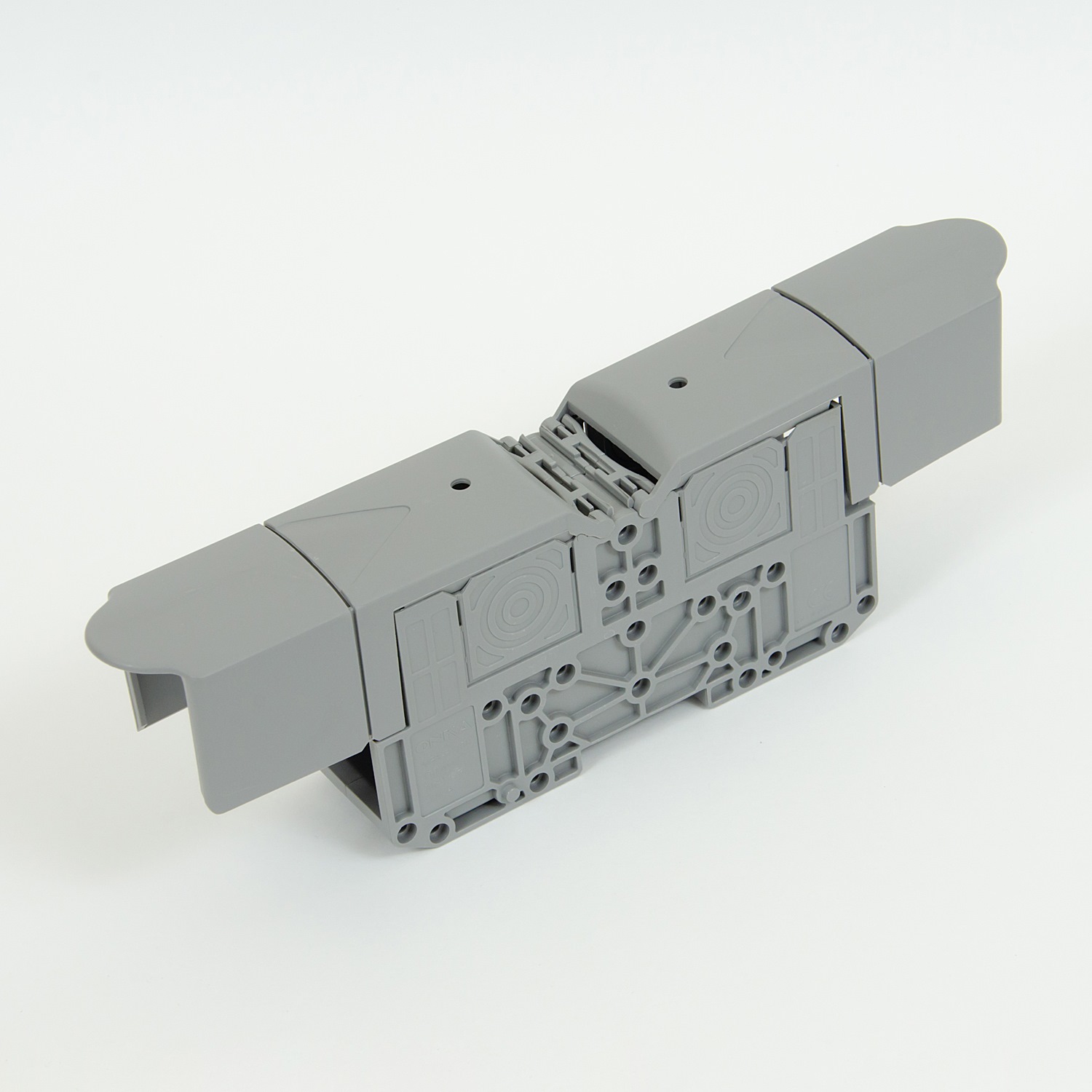

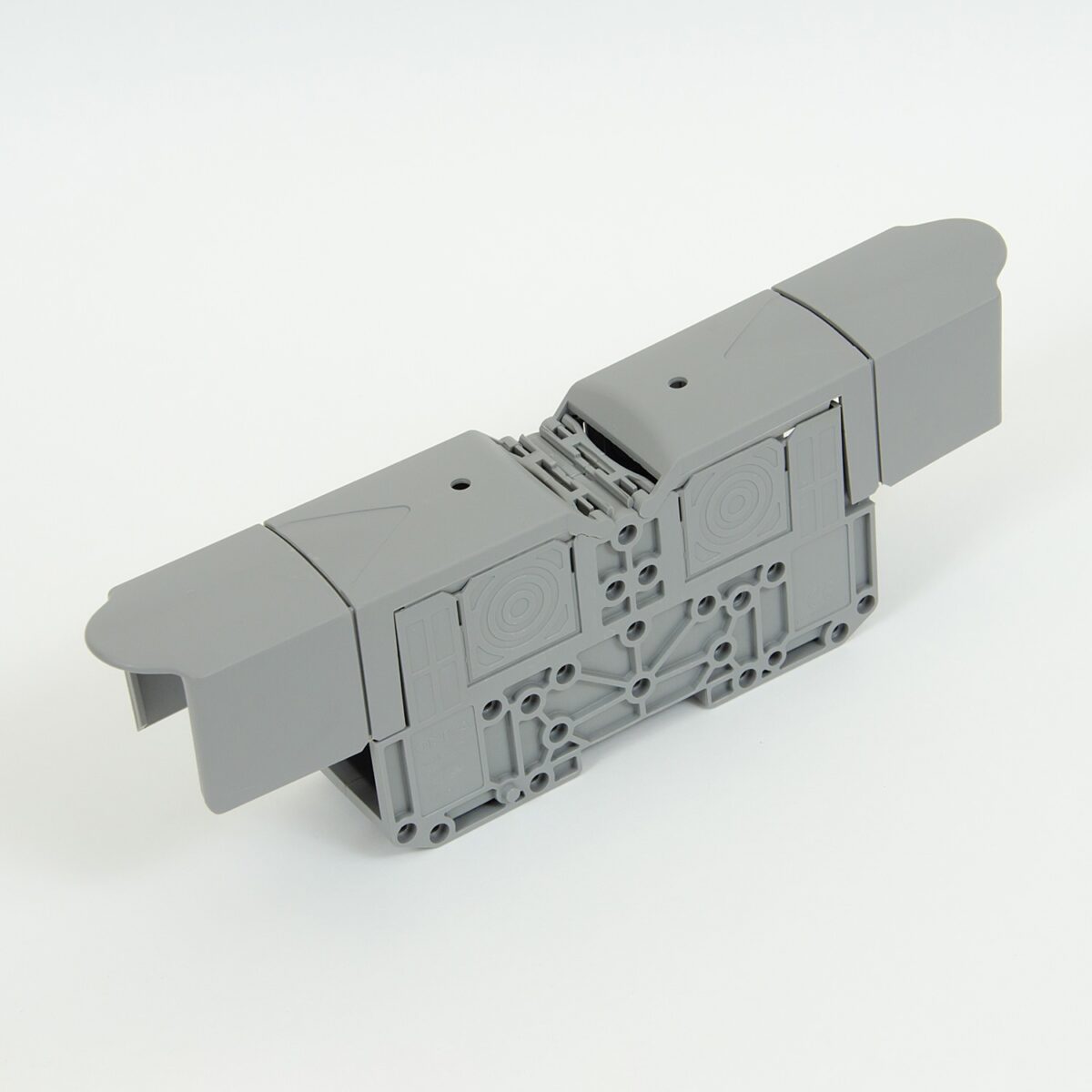

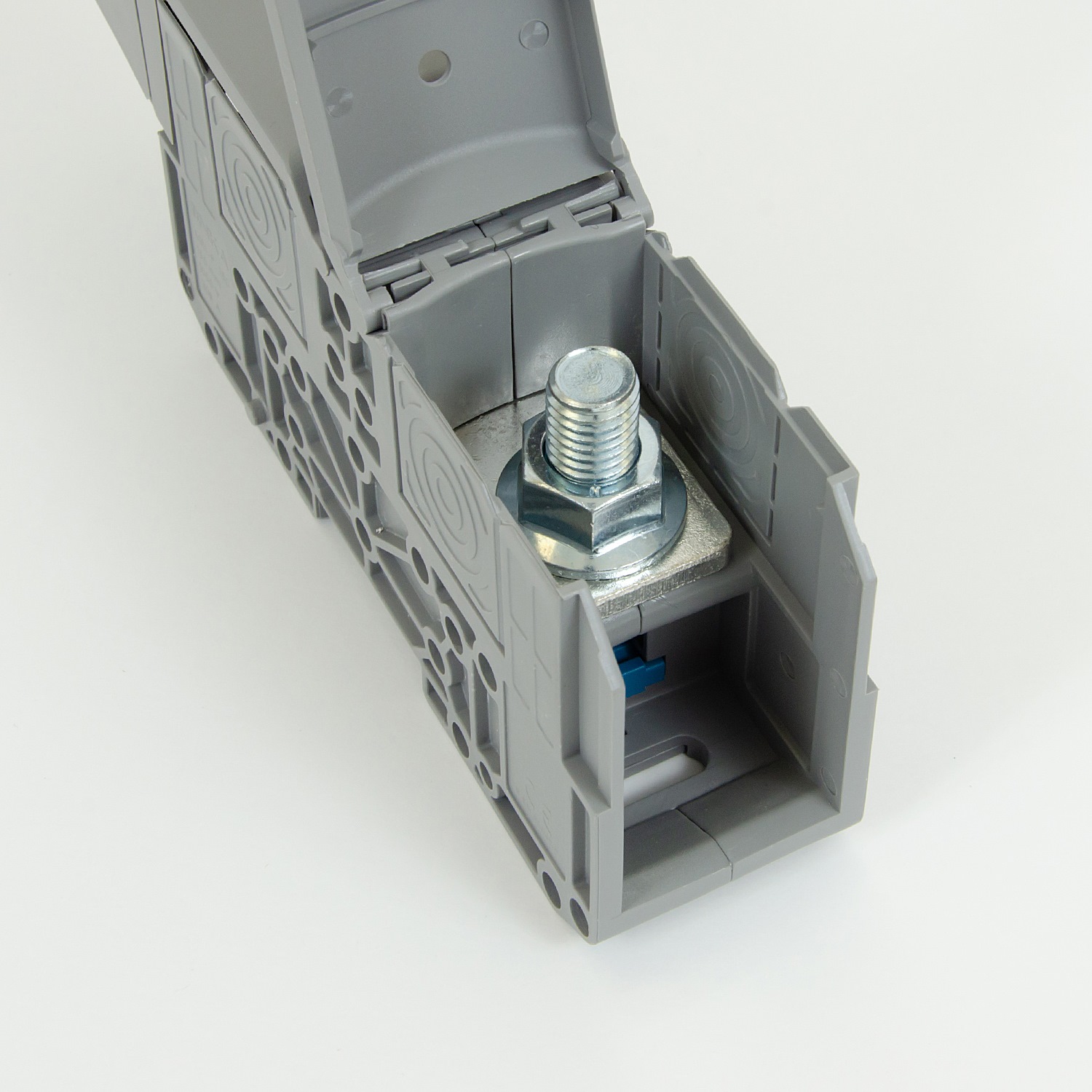

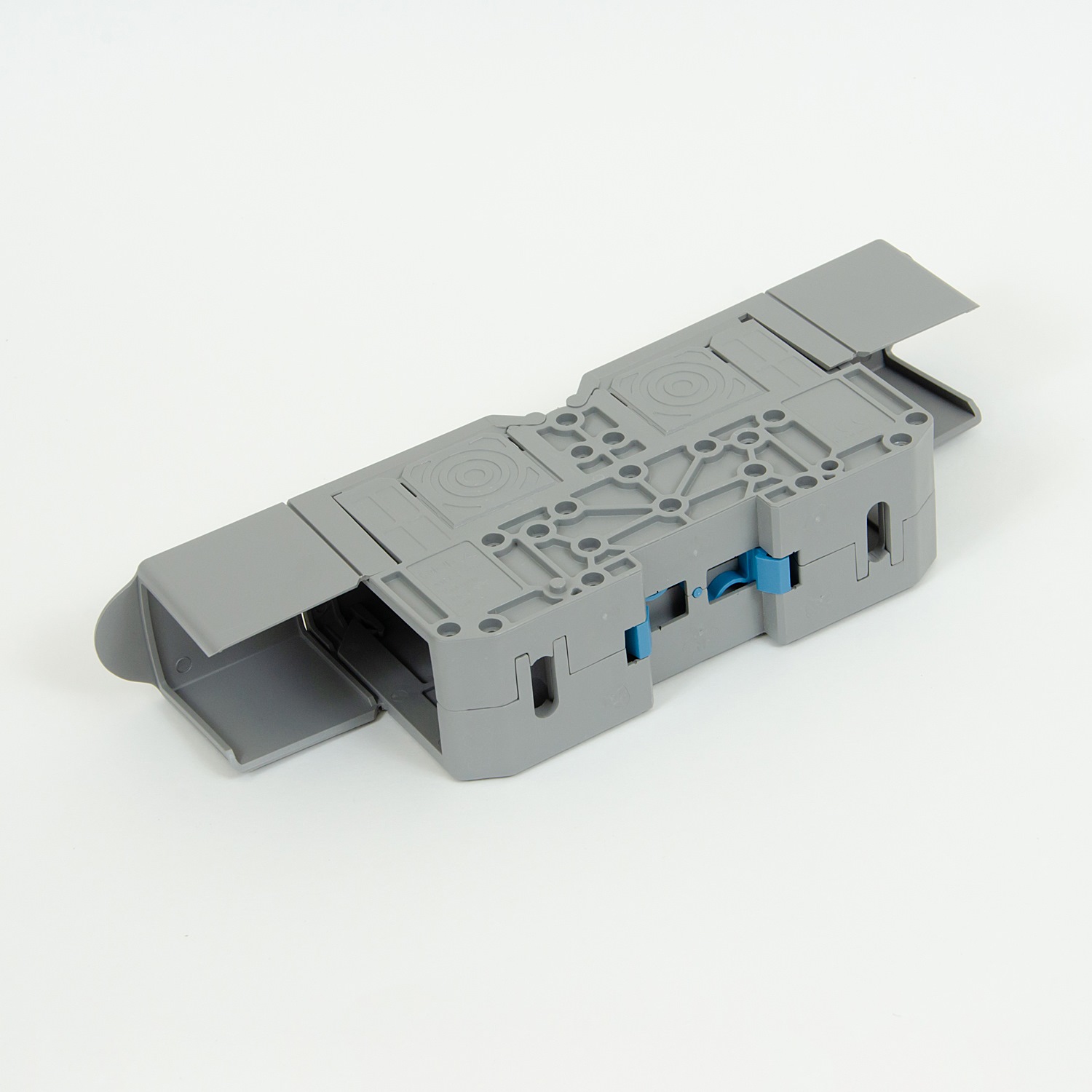

ONKA 150mm2 M12 Screw rail connector terminal block DIN rail terminal with protective cover, grey, 1030088

Description

M12, 150mm2, threaded busbar rail connector / DIN rail terminal with protective cover, grey, ONKA, made in Turkey

ONKA’s compact installation rail connectors provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.

Technical parameters

Cross section of the connected single wire up to: 150mm2
Colour: grey
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/Copper
Connection position: lateral / lateral
Rated voltage: 1000V
Rated current: 309A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
