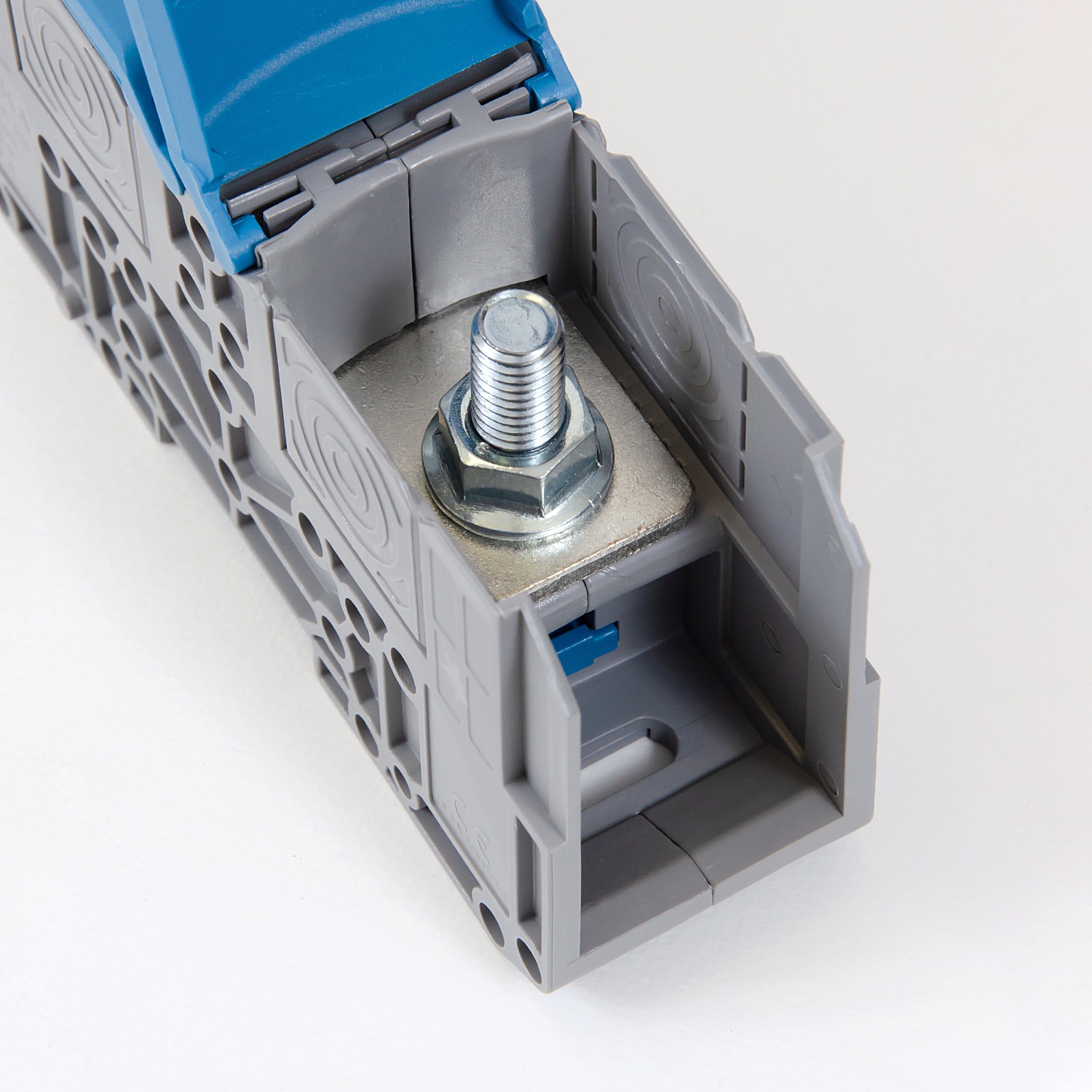

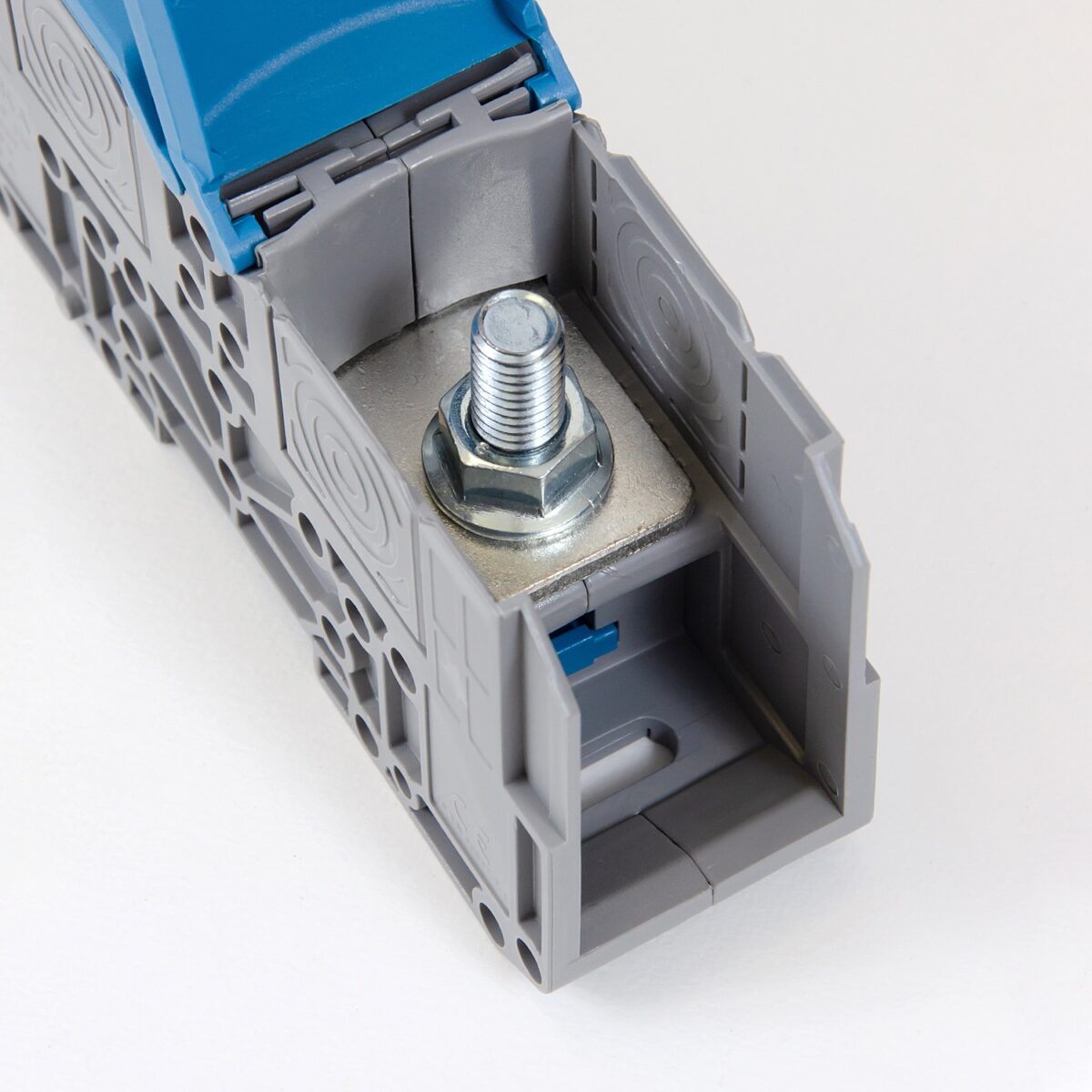

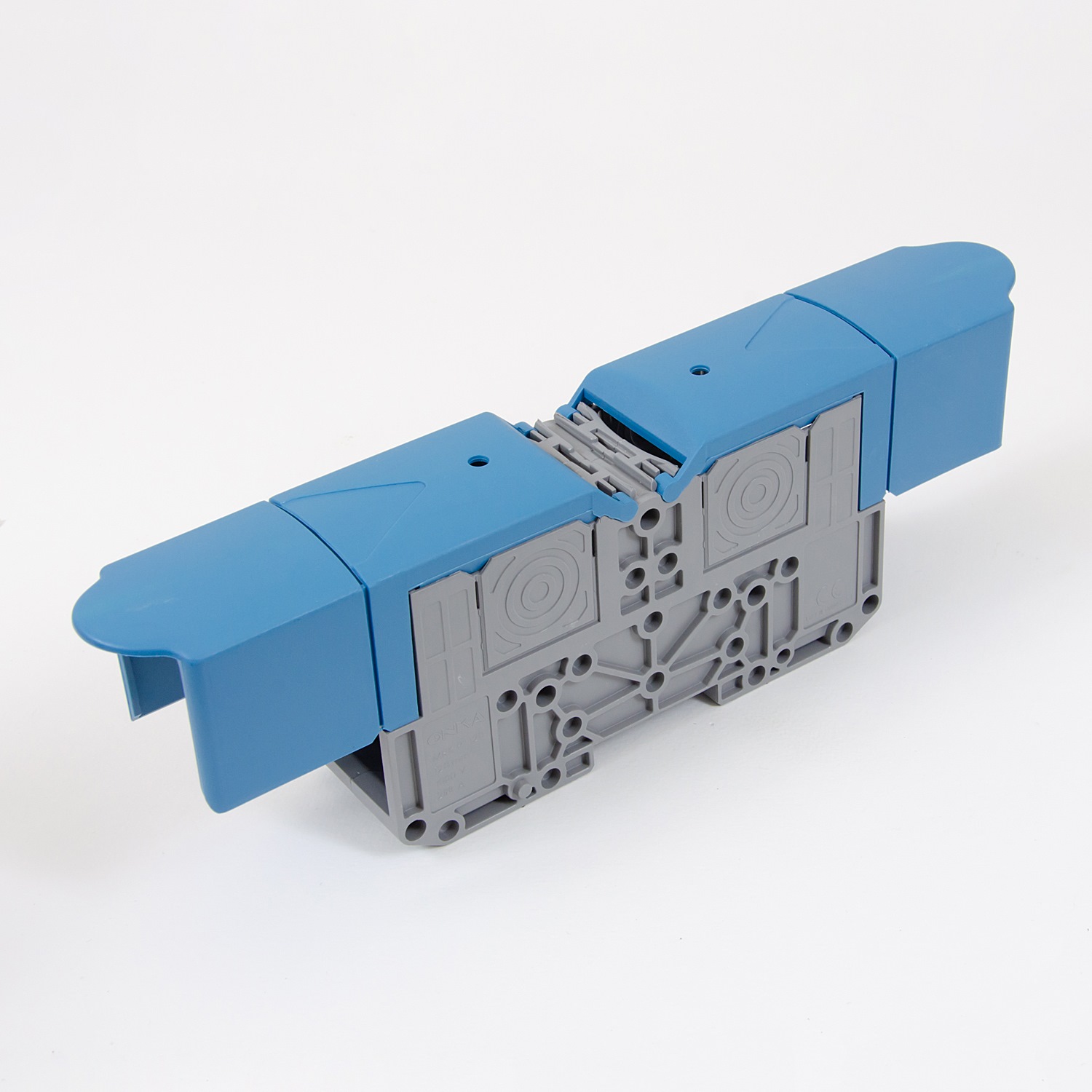

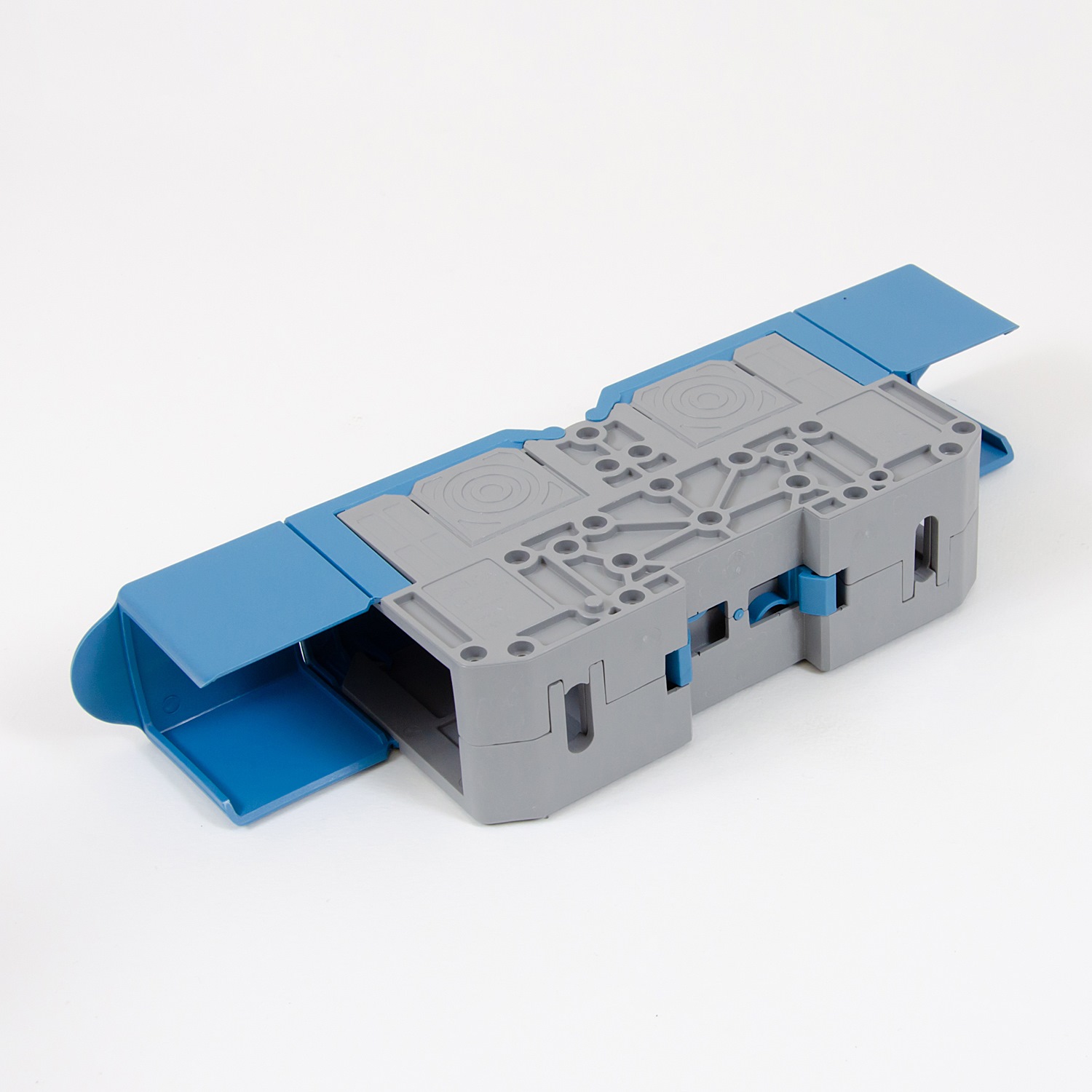

ONKA 120mm2 M10 Screw rail connector terminal block DIN rail terminal with protective cover, blue, 1030076

Description

M10, 120mm2, threaded busbar rail connector / DIN rail terminal with protective cover, blue, ONKA, made in Turkey

ONKA’s compact installation rail connectors provide great possibilities for connecting any wire of different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick couplers are a convenience in installation and 100% connection reliability.

Technical parameters

Cross section of the connected single wire up to: 120mm2
Colour: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/Copper
Connection position: lateral / lateral
Rated voltage: 1000V
Rated current: 269A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
