ONKA 10mm2 spring rail connector terminal block DIN rail terminal 2-wire blue, 1020047

Description

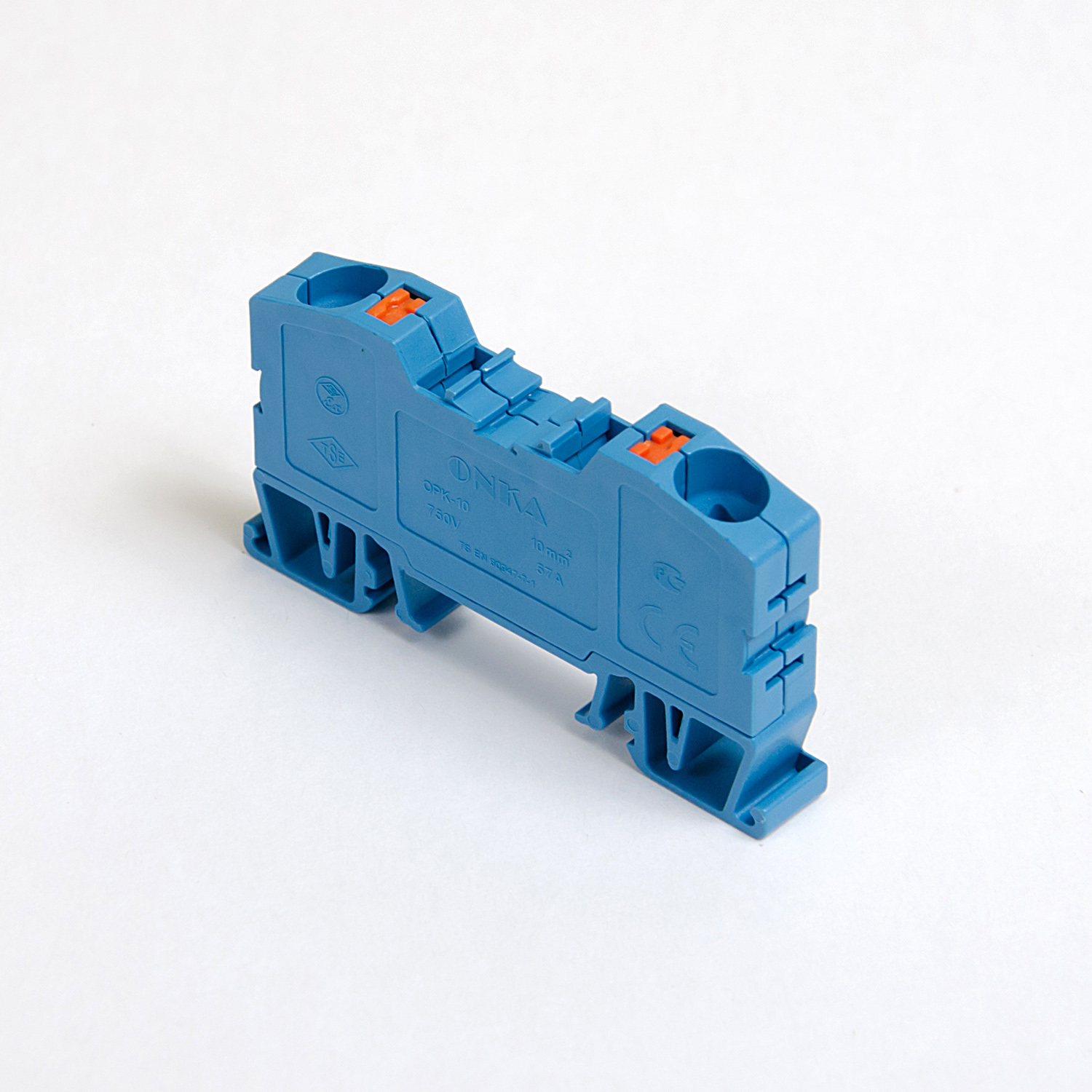

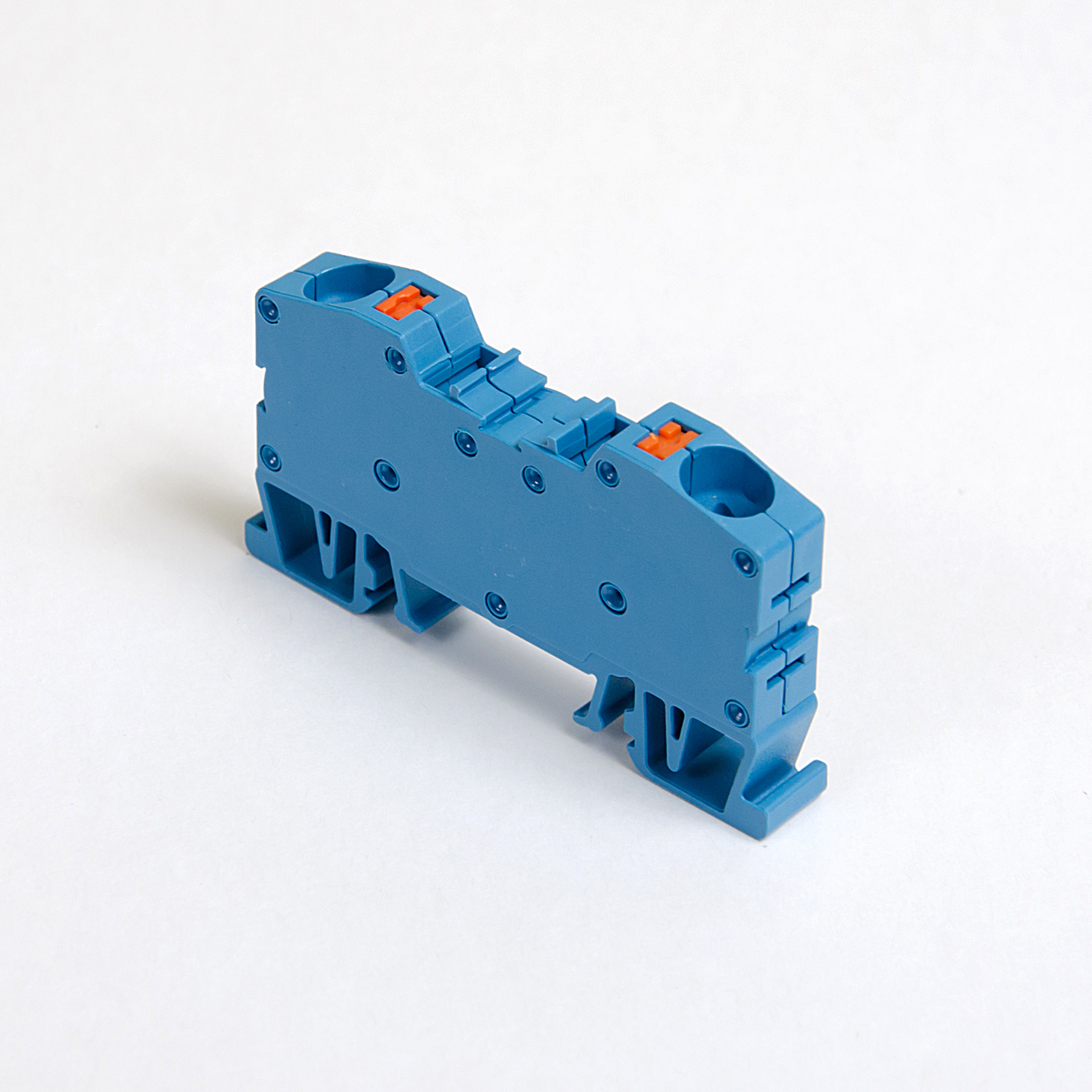

Spring busbar rail connector / DIN rail terminal 2-wire, retractable contact, blue, ONKA, made in Turkey.

The ONKA coupler/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made of high quality materials, the coupling guarantees long term use and resistance to mechanical damage.

Technical parameters

Cross section of the connected single wire up to: 10mm2
Colour: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: stainless steel/copper
Connection position: top / top
Cable strip length: 12mm
Type of electrical connection: spring clamp / retractable contact
Rated voltage: 750V
Rated current: 57A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
