Double layer LED post with surface mount buzzer
Price range: 2 157,00 Kč through 2 617,00 Kč

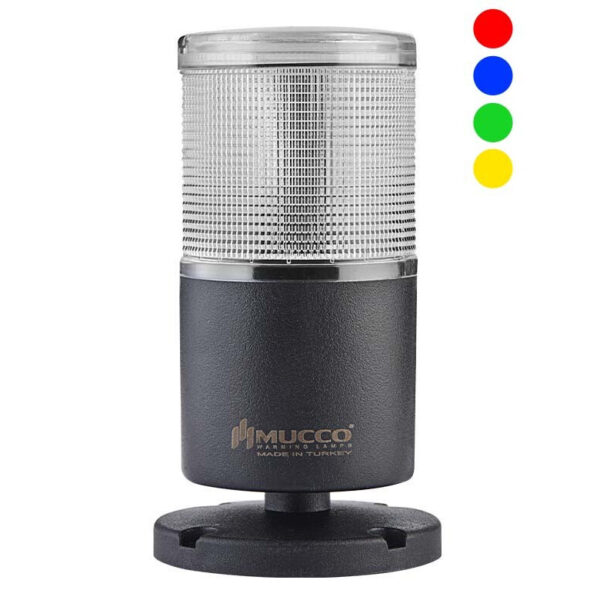

LED post with sound signal Alarm siren Signal beacon for surface mounting
Price range: 2 242,00 Kč through 2 518,00 Kč
Description
Surface mount LED buzzer 12-24-40-250V AC/DC, SNT-7022 / SNT-7013, manufacturer MUCCO (Turkey)
|
Rated voltage, inrush current |
12-24V DC 55 mA ±10% (SNT-7013-FB3) 40-250V AC/DC, 10mA ±10% 50-60 Hz (SNT-7022-FB3) |
|
Degree of protection |
IP65, water, dust, heat and UV resistance |
|
Cover colour |
Red (other combination on request) |
|
Light source |
SMD LED |
|

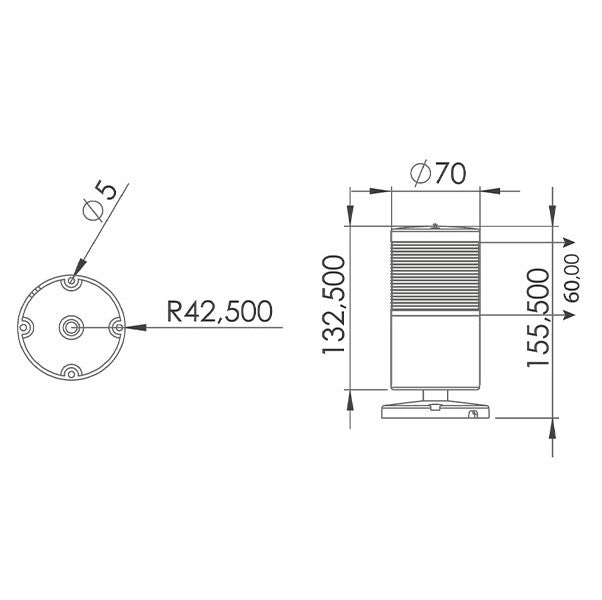

Cover diameter |
ø70 mm |
|
Volume |
103~116dB/1m (3.3ft) |
|
Opticalsignaltype |
Flashing |
|
Acoustic signal type |
Buzzer, 1 ton (SNT-7013-FB2) |
|
Input response |
On/off: max. 10 ms |
|
Operating temperature |
-20 °C to +50 °C (-4 °F to +122 °F) |
|
Life expectancy |
Minimum 50,000 hours |
|
Material |
ABS (body) + polycarbonate (cover) |
|
Mounting method |
Surface mounted (other mounting methods are possible with accessories) |
|
Certificates and quality documents |
ISO-9001, CE, RoSH2 and EAC |
