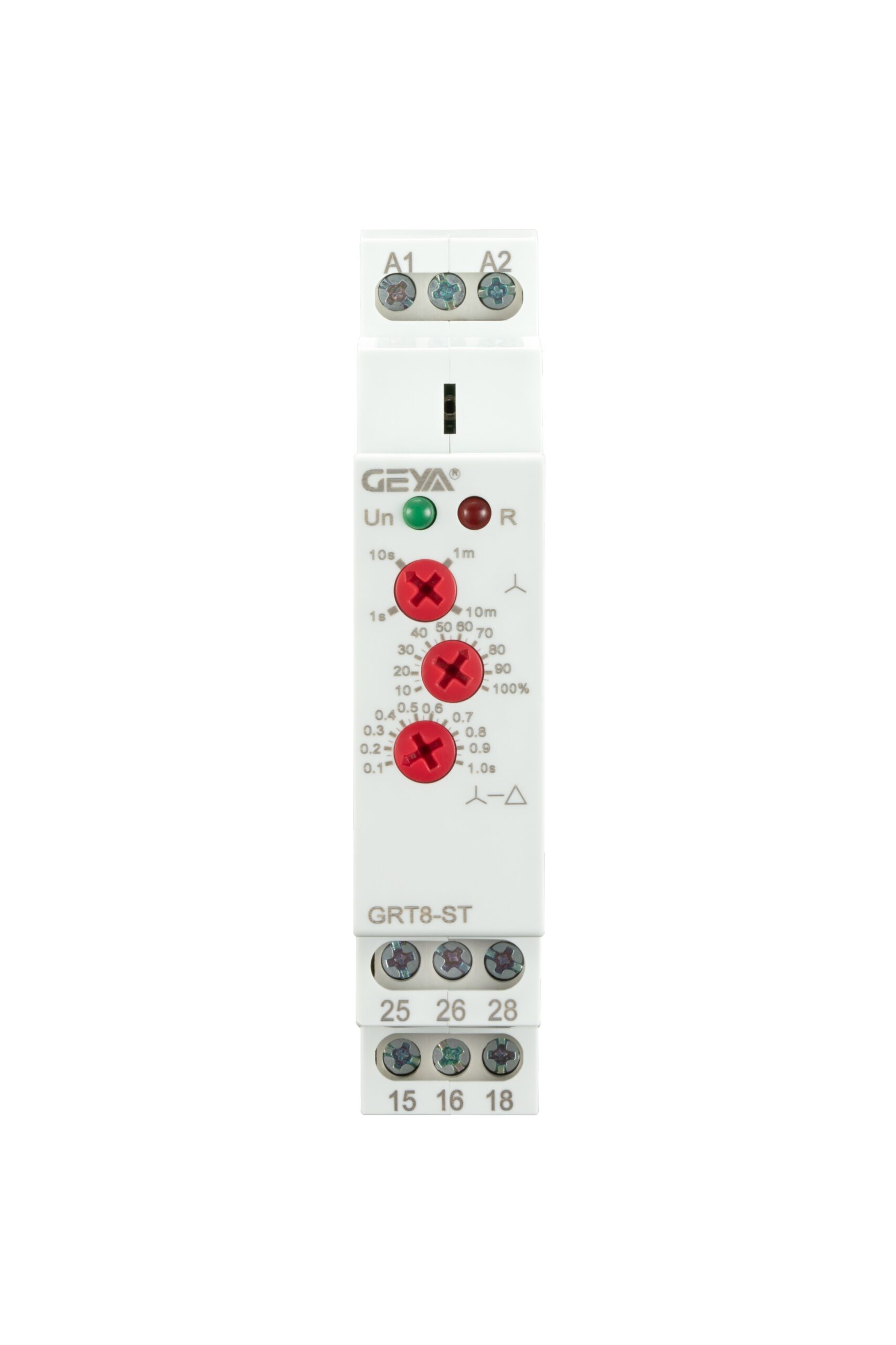

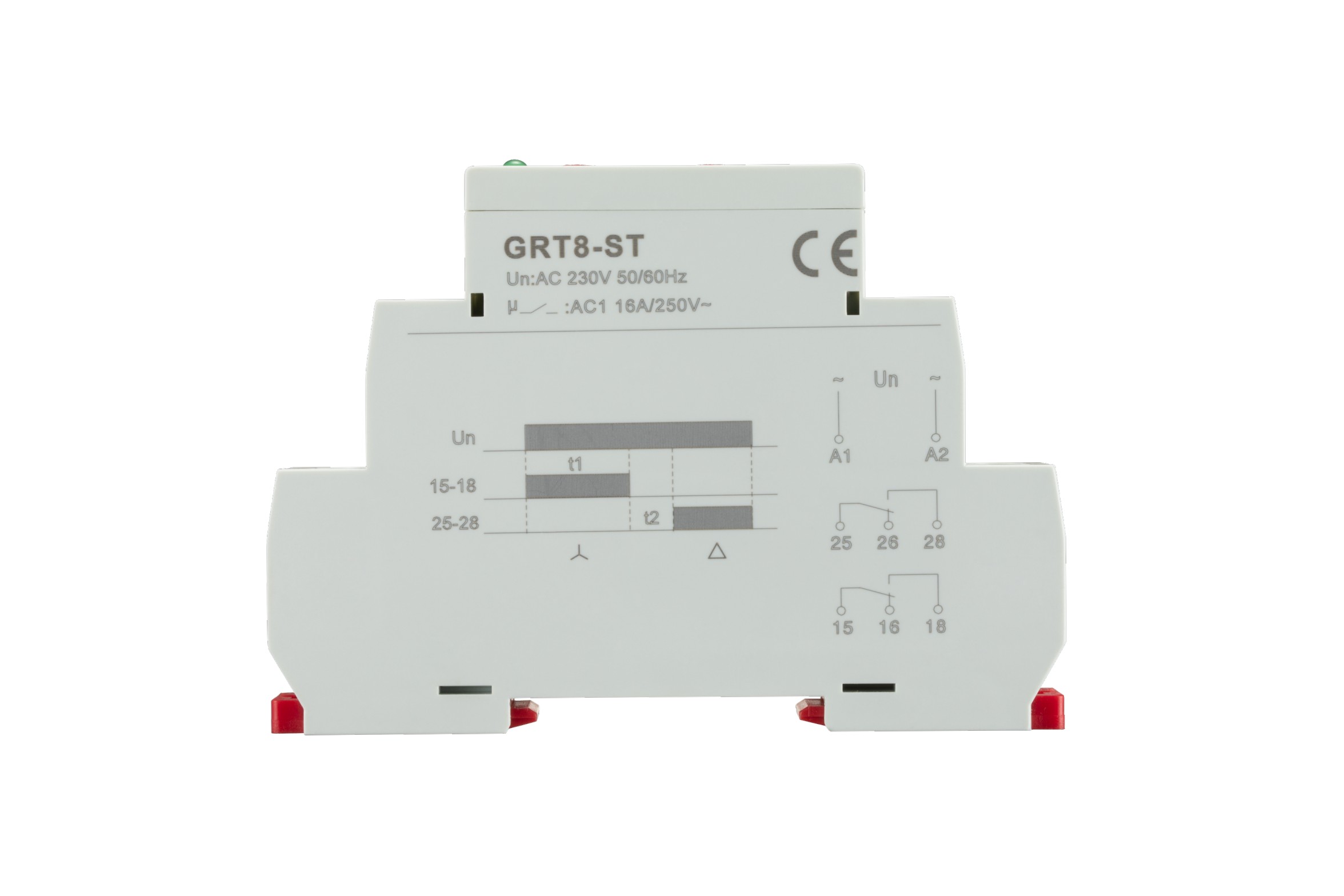

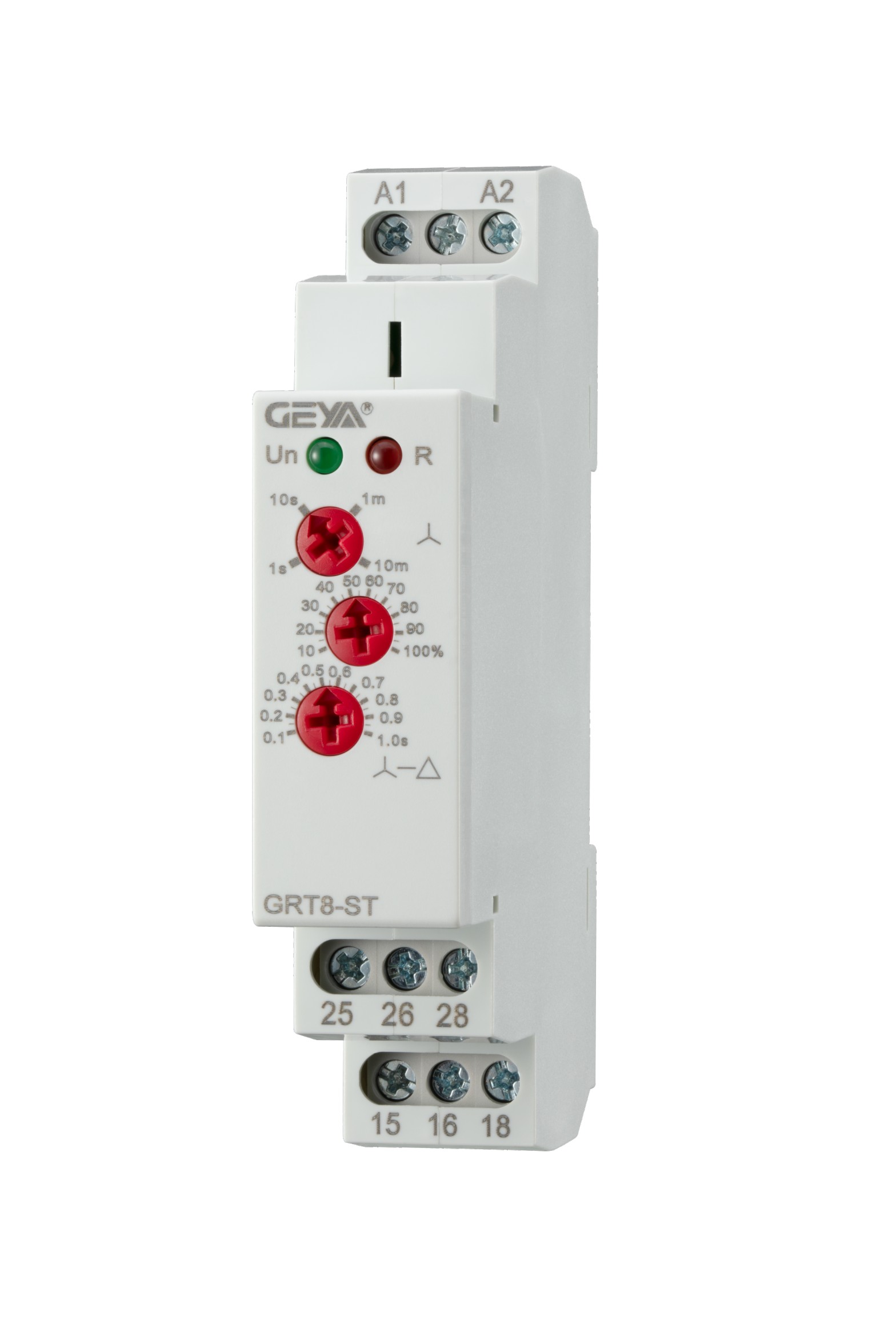

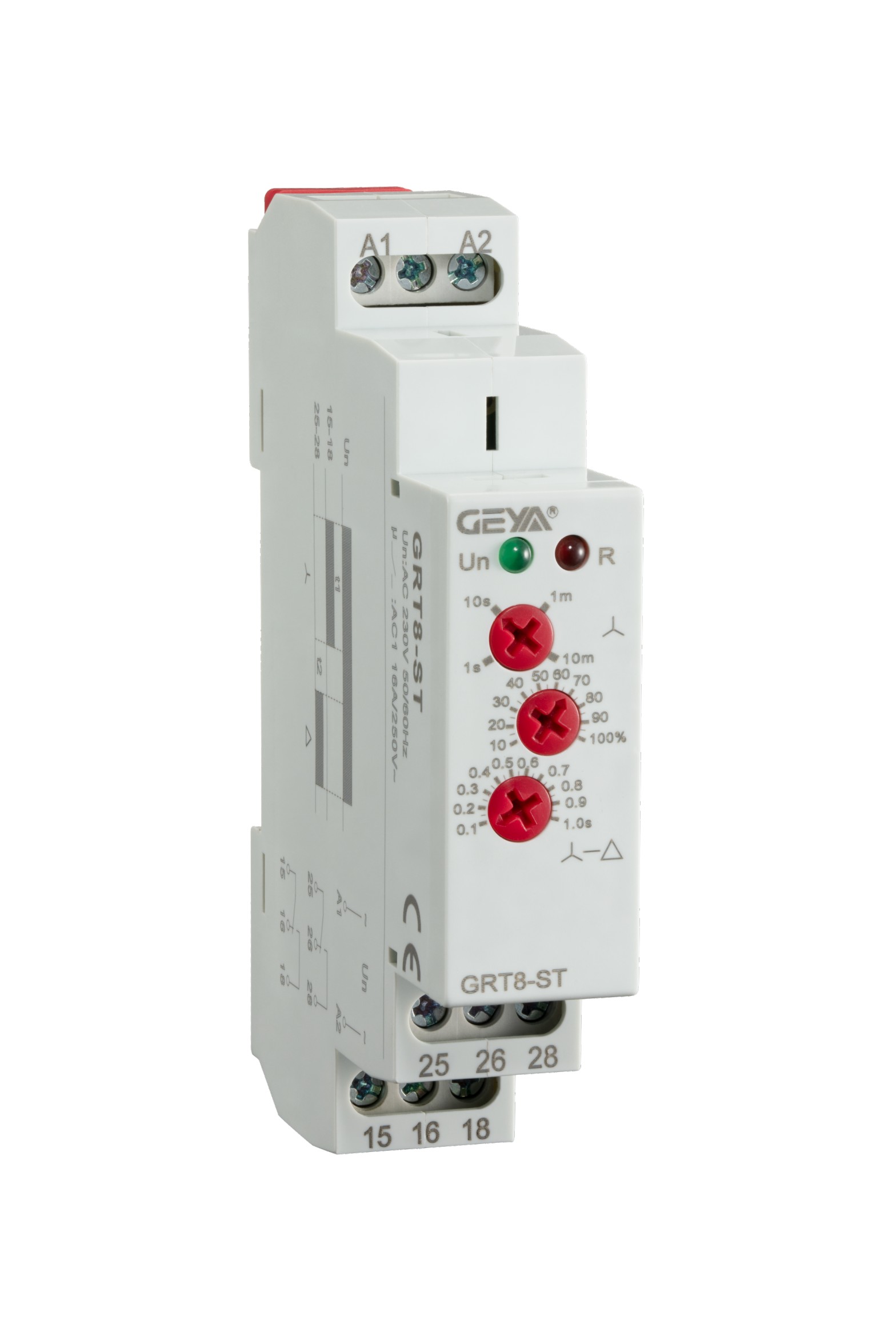

GEYA GRT8-ST Delay time relay star-delta AC230V 380V~440V AC/DC12

Description

****This is a star triangle time delay motor start relay, for motor protection. It does not directly drive the motor. The relay must be connected to an AC contactor and then the AC contactor must be connected to the motor for control. -Specified for motor start delay star triangle.

Functions -Time t1 (star): time scale 0.1 s – 10 min divided into 4 time ranges coarse time setting by rotary switch -Time t2 (delay): time scale 0.1 s – 1 s time setting by potentiometer – Relay status is indicated by LED – 1-MODULE, DIN rail mounting.
