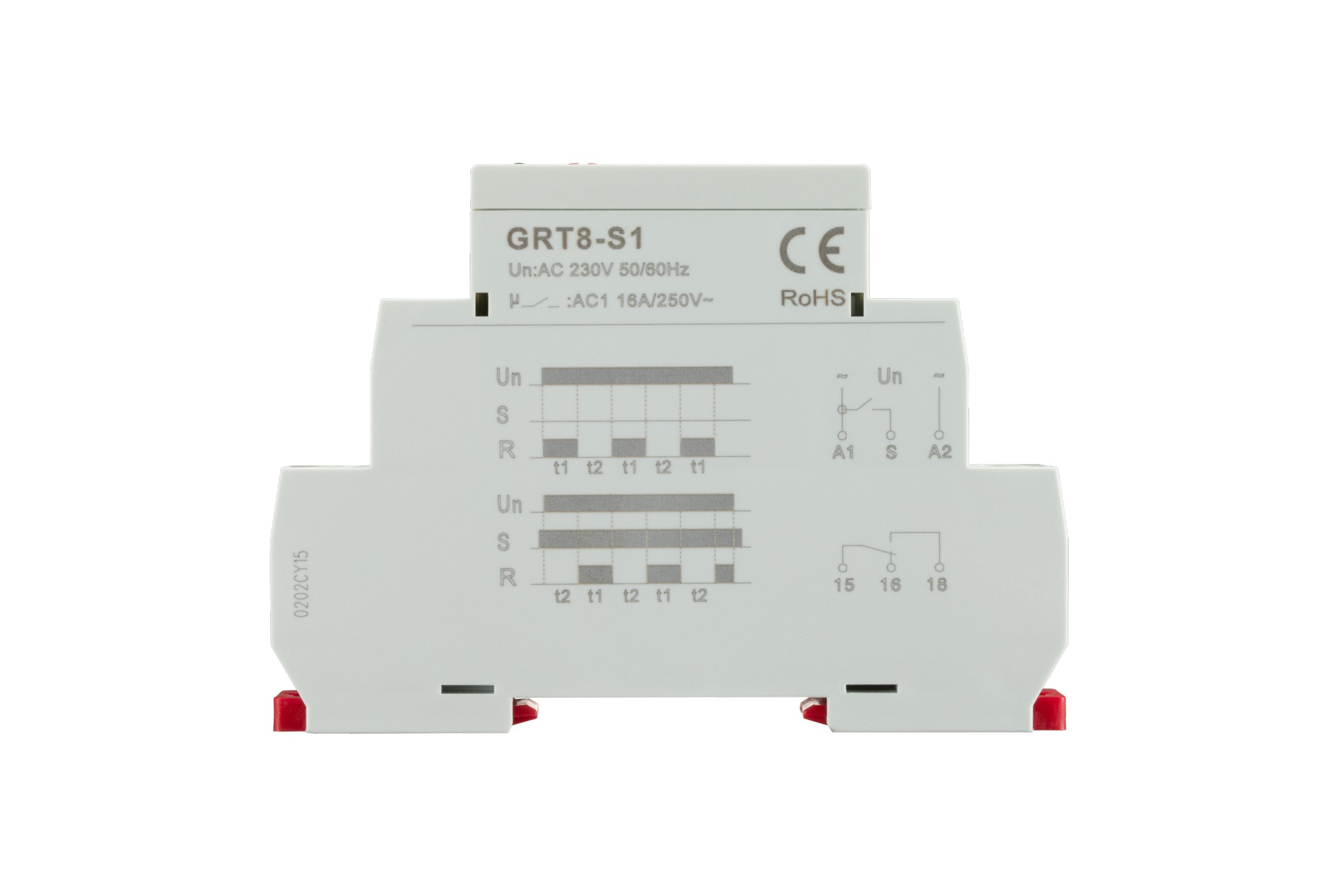

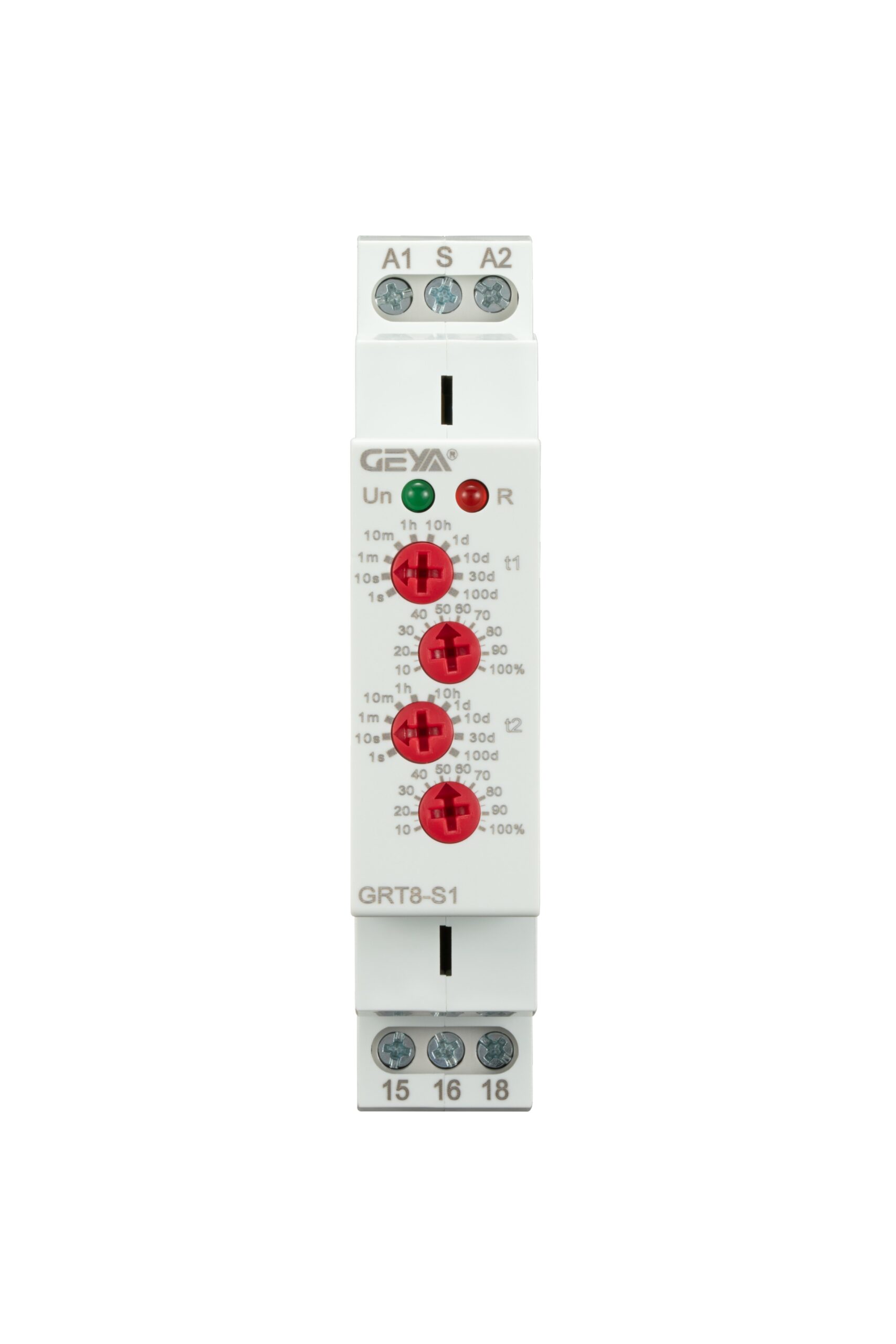

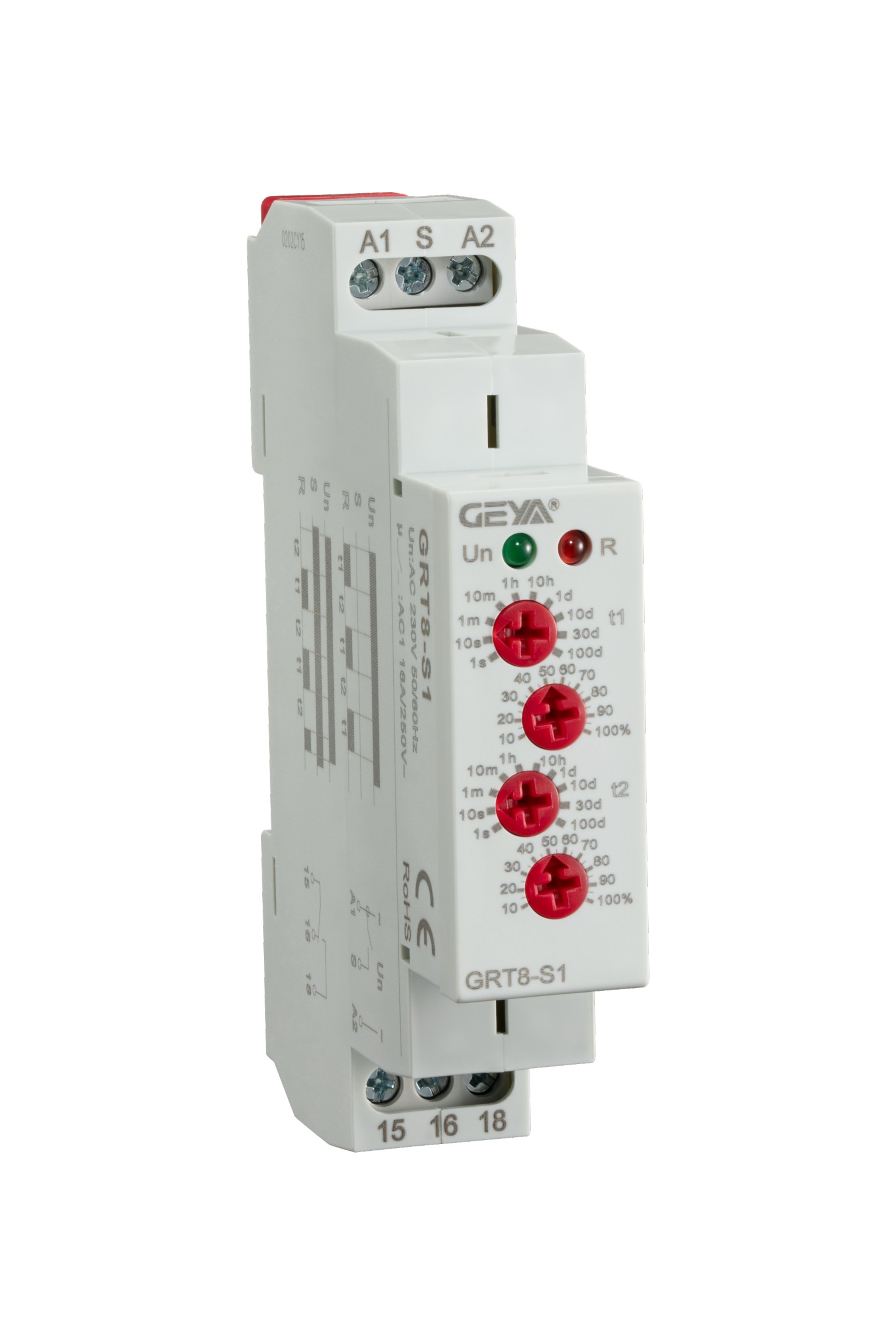

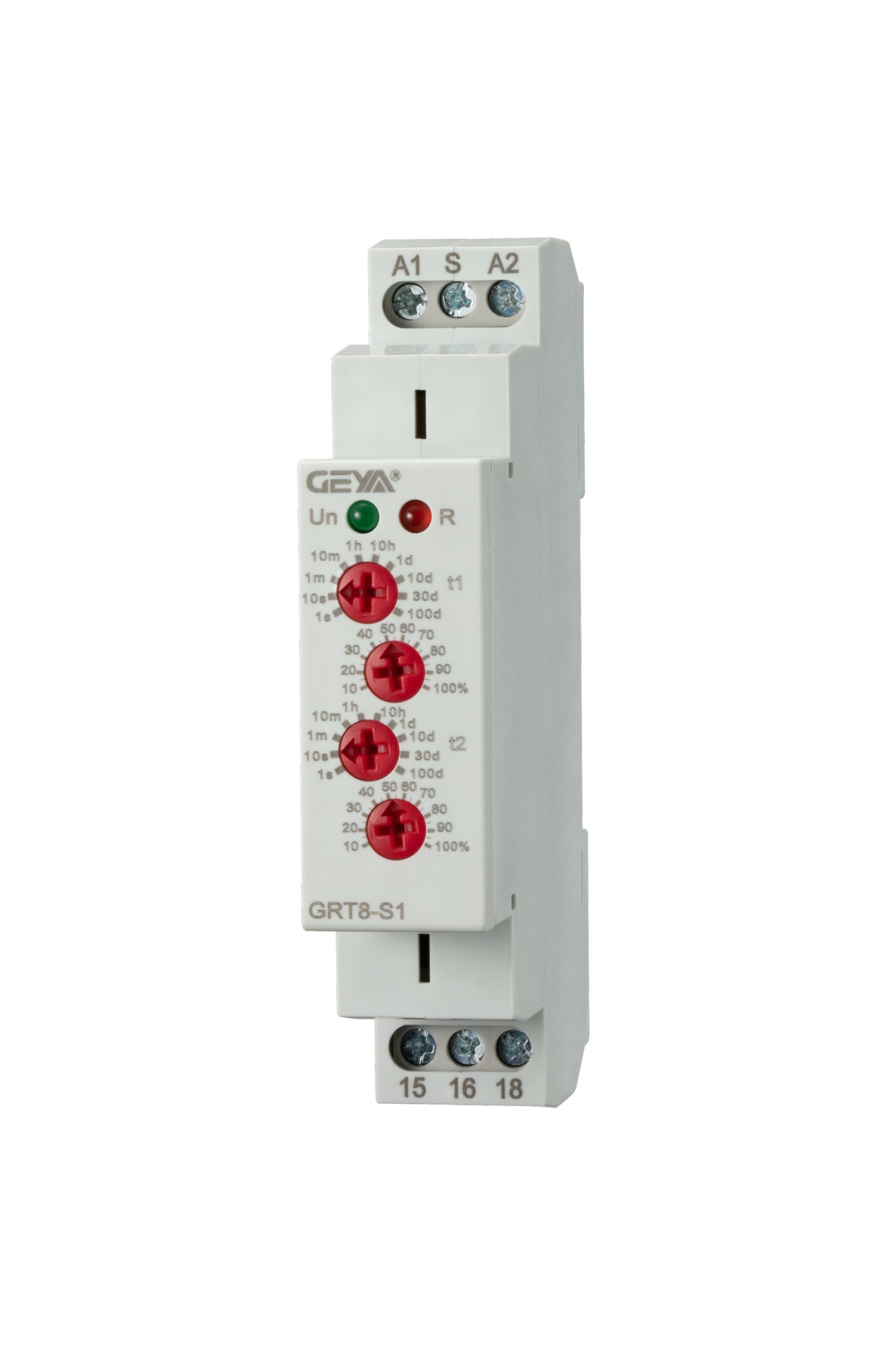

GEYA GRT8-S1 Asymmetrical cycler / Time cycling relay, AC/DC12V-240V

Description

Nominal supply voltage: AC/DC 12V~240V (50-60Hz) Power: AC 0.09-3VA / DC 0.05-1.7W Delay time range: 0.1s-100 days, NO, NC Setting method: knob Setting accuracy: 10%, Repeat accuracy: 0.2% Temperature fluctuation error: 0.05%/, at = 20 Output contact: 1 x SPDT, 16A/AC1 Minimum switching power: 500mW Power indicator: Green LED Output relay indication: Red LED Mechanical lifetime: 1×107 Electrical lifetime: 1×106 Reset time: Max 200ms Operating temperature: -20~55, Storage temperature: -35~75 Mounting method: 35mm DIN rail Degree of protection: IP20 Connection options: 1×2.5mm2 / 2×1.5mm2 Dimensions: 90*18*64mm Package weight: Approx. 75 g / 2.6 oz
