Fan with filter, 30 (41) m3/h, 120×120, 230V 50/60Hz, IP54 PTF1000 Plastim

Description

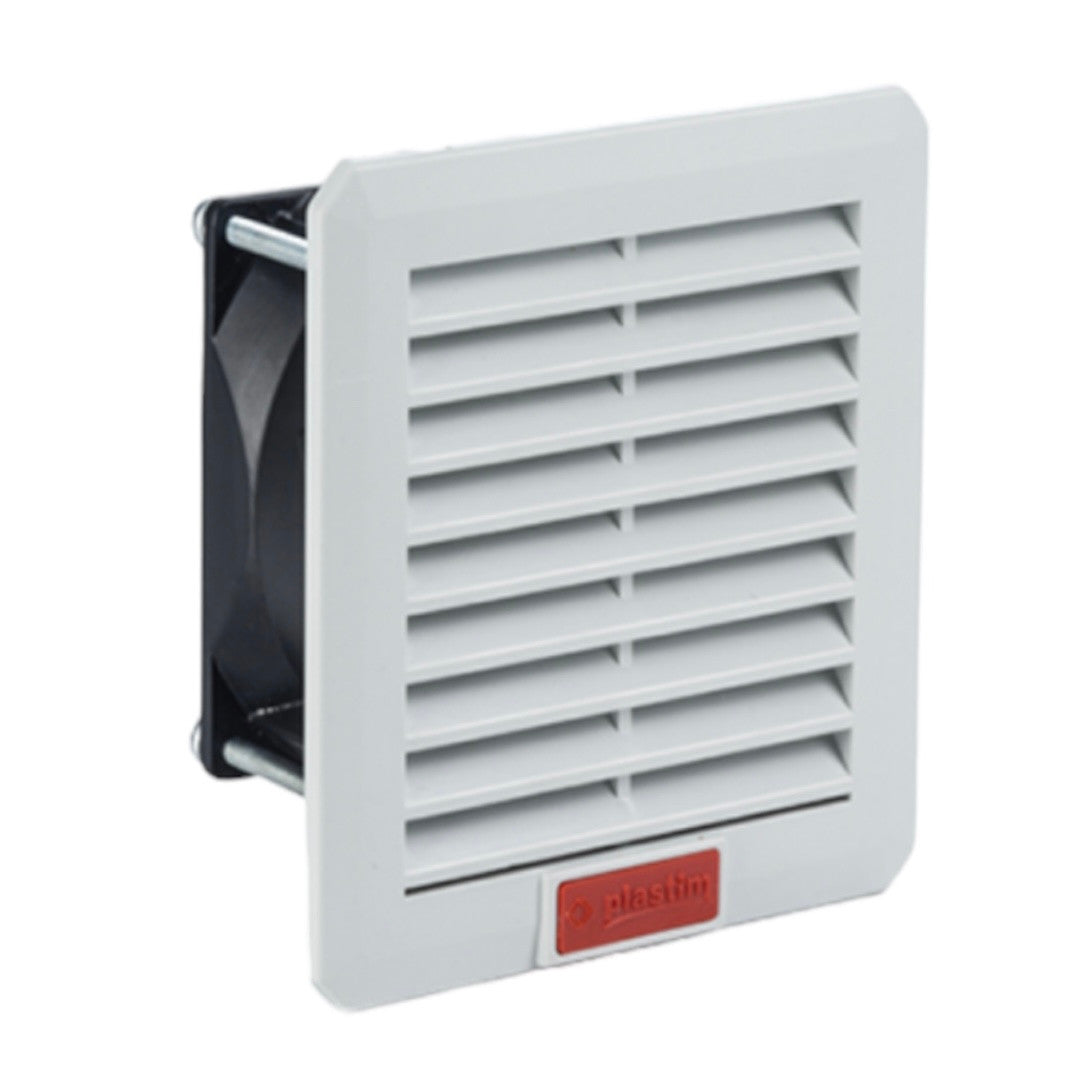

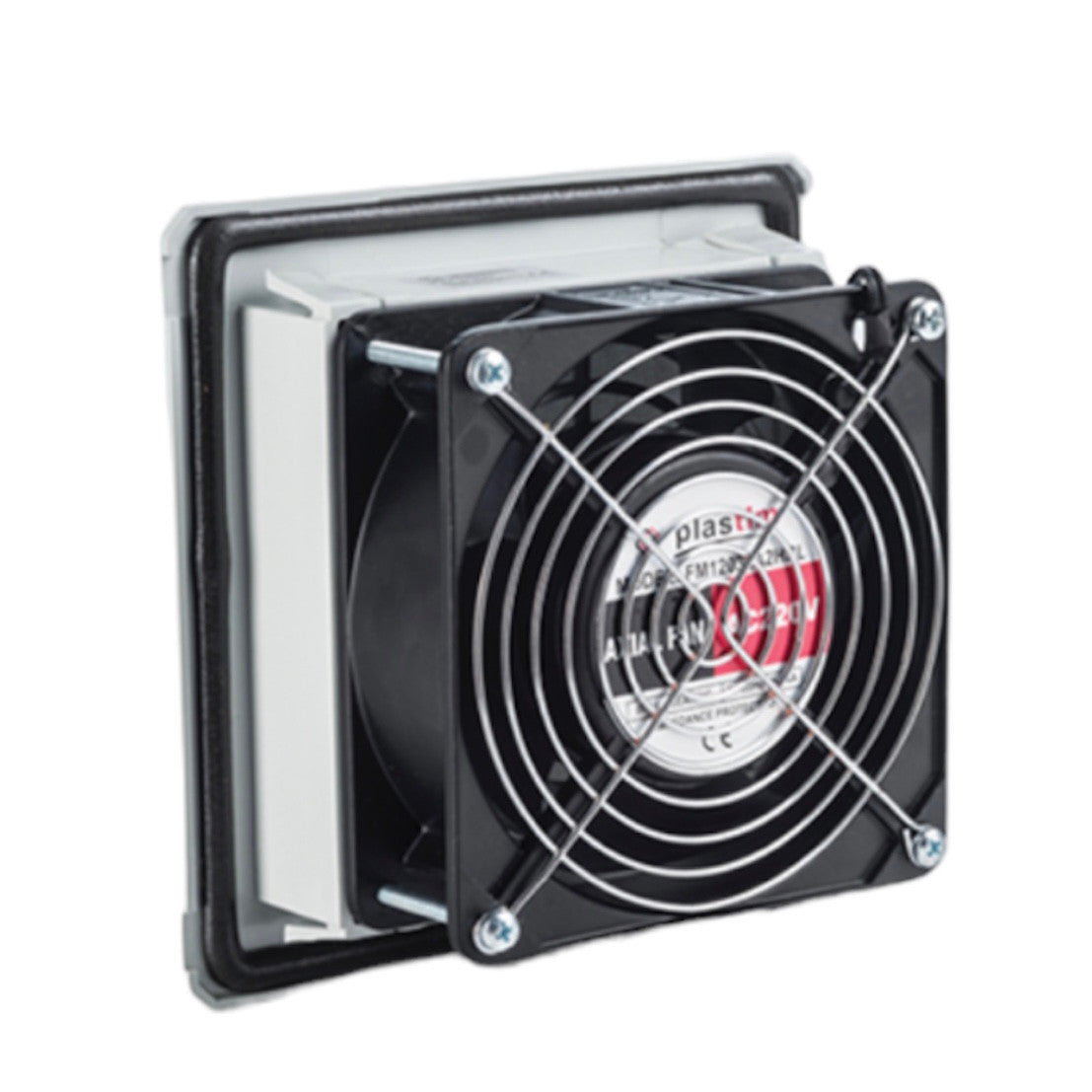

Ventilation grille with fan and filter, size 120×120 mm, for installation in electrical panel, automation cabinet, ATM or gaming terminal. PTF1000, manufacturer Plastim (Türkiye)

Used for outdoor air intake for electrical cabinets, ATMs, payment terminals, gaming machines, automation cabinets, control panels, gas stations. Usually installed in side walls of boxes to maintain IP.

• External dimensions: 120x120x58,5 mm
• Installation size: 92x92mm
• Volume flow rate: 30 (41) m3/h
• Noise level: 28 (31) dB(A)
• Bearing: Sleeve type bearing
• Operating Voltage: 220-230VAC, 50/60Hz
• Current consumption: 0.08(0.07) A
• Rated power: 14 (13) W
• Electrical Connection: Lead Wire
• Direction of flow: Outside to inside (can be changed)
• Operating temperature: -10/+70 °C
• Degree of protection: IP54
• Plastic material: UL94 V0 ABS Flame retardant
• Seal: Self-adhesive
• Colour: RAL 7035 (RAL 7032 on request)
• Weight: 0.4 kg
• Installation: Fast Clip-on

To provide automatic air exchange and temperature maintenance with this fan you will need either a simple bimetal thermostat or a more complex temperature controller, both devices can be purchased from our website.

The ventilation grille is equipped with a replaceable filter. This filter cartridge can be easily replaced or cleaned and reused.
