DTA-96 Digital Temperature Stage Control Relay

Description

DTA-96 Digital Relay for Stepped Temperature Control Digital temperature control relays are designed to maintain temperature in environments requiring temperature-dependent setpoint control.

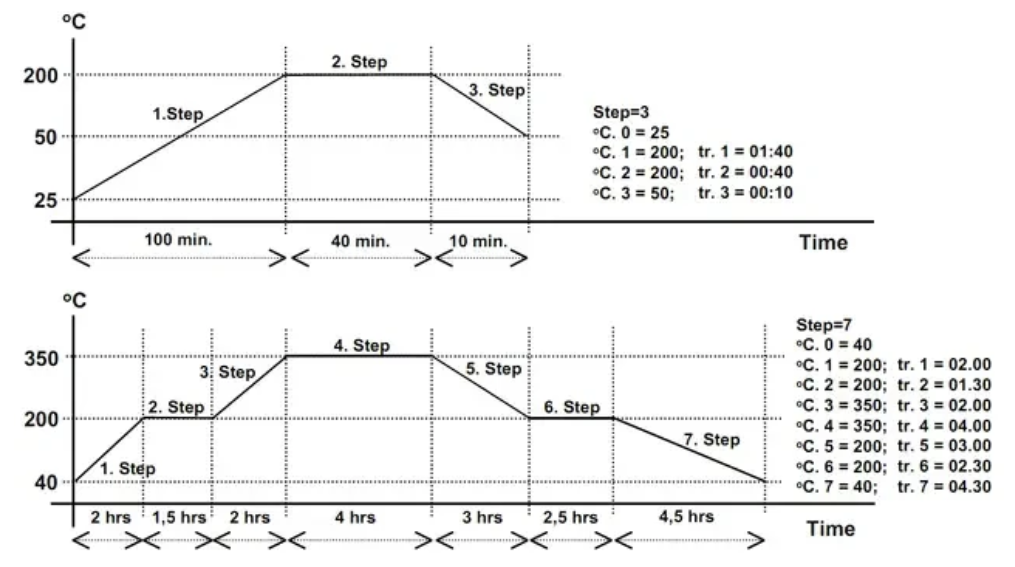

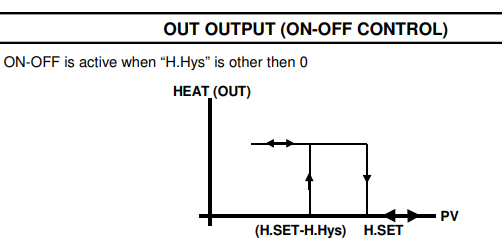

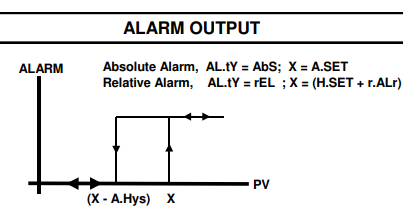

– Microprocessor PID temperature step controller – Automatic tuning of PID parameters – Sensor type: T/C (J,K,S), Pt100 – Optional control type: P, PI, PD, PID or ON-OFF – Anti-windup function – Maximum 20 steps – Step time setting up to 18 hours/step – Selectable relative or absolute alarm – Displays SET values, process value, Step number and time remaining – Cold junction compensation for T/C – Lead compensation for Pt100 – Excellent linearity with °C/mV and °C/Ohm lookup tables – “Offset” function for input – Password protection – High accuracy – EEPROM memory for saving settings – Optional SSR output – Easy connection via connectors
