Digital built-in panel ammeter for measuring AC indirect currents X/5
Price range: 805,00 Kč through 1 093,00 Kč
Description
DJ-A – Digital panel ammeter built-in AC, X/5, indirect measurement, TENSE panel meters.
CT ratio from 5/5A to 9995/5A (direct measurement 100mA – 5.5A).
Usually this ammeter is used with current measuring transformers – 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our e-shop
Technical data

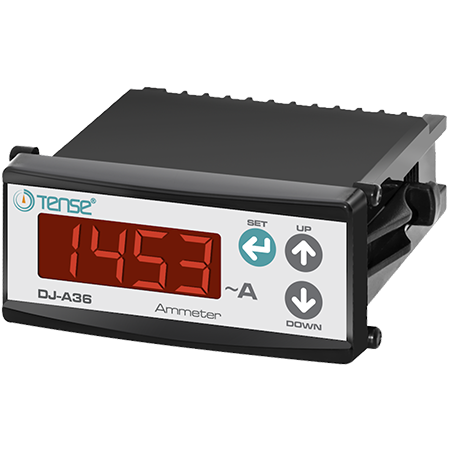

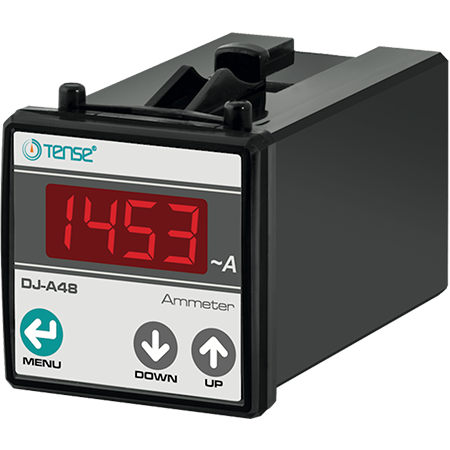

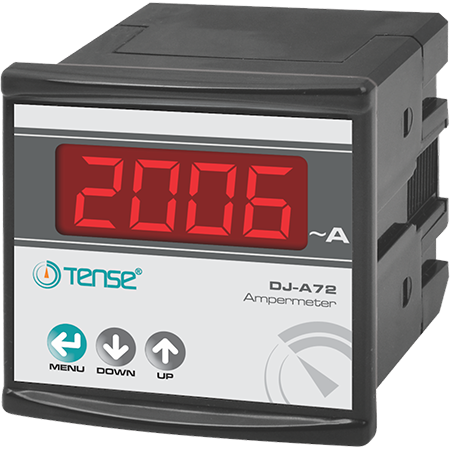

Mounting dimensions: 91×91 mm (DJ-A96), 68×68 mm (DJ-A72), 46×46 mm (DJ-A48) and 31×72 mm (DJ-A36).
Measurement accuracy: ±%1
Operating voltage (Un): 150V – 270V AC
Operating frequency: 50/60 Hz.
Operating power: <4VA
Connection type: Plug-in terminal
Fixing: Plug-in module with socket connection: Clamp: clamping yoke
Operating temperature: -20 °C …. +55 °C
