Delay ON-DELAY OFF-DELAY Time relay LED display for panel/door mounting
Price range: 1 265,00 Kč through 1 840,00 Kč
Description
Time delay ( ON-DELAY OFF-DELAY) relay LED display for panel/door mounting – time delay switch. VOLTAGE ERD-96T, ERD-48T, ERD-72T

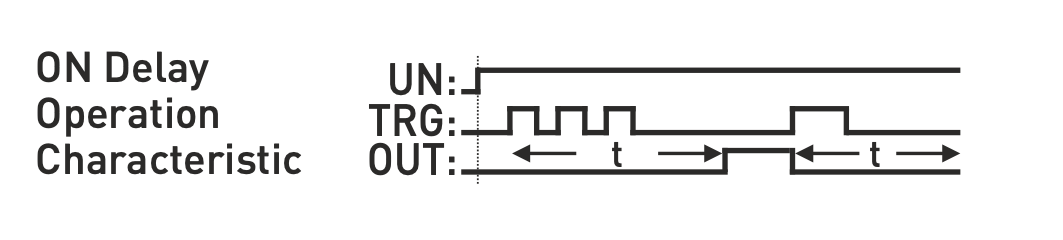

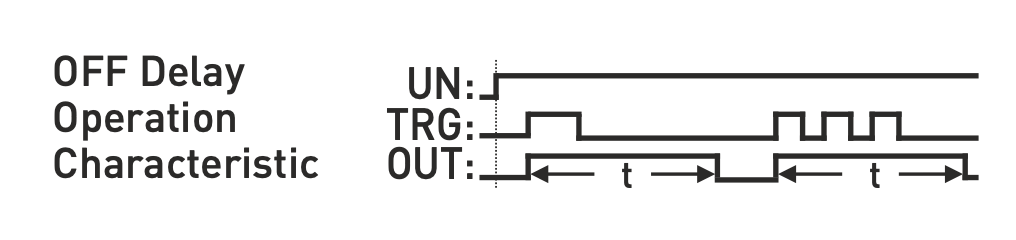

Time relay with two delay functions.
The time delay relay is used to switch loads in stages: electric boilers, furnaces, heaters, etc., preventing current surges in the network and tripping of circuit breakers due to large overvoltages.
Time setting range:
(optional on front panel): 99.9 seconds, 999 seconds, 99.9 minutes or 999 minutes.
Technical data
Switching contact: max. 5A/250VAC
Operating frequency: 50/60 Hz.
Operating power: <5VA
Operating temperature: -20 °C …. +55 °C
Connection type: Plug-in terminal
Fixing: Plug-in connector Clamp: clamping yoke
