Bistable memory relay / Start-Stop relay, pulse pulse / Pulse switch

Description

Bistable Electronic Pulse Relay/Start-Stop Relay, Memory Relay, Pulse/Pulse Switch Mounting Bar with 1 Switching Contact, 150V – 260V AC 50/60Hz TENSE (Turkey)

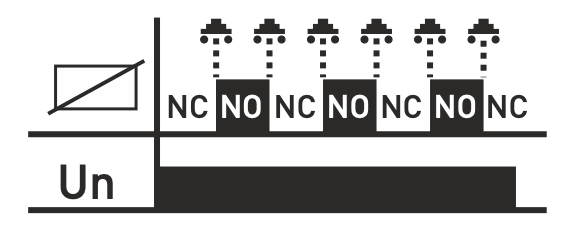

Bistable electronic pulse relay allows lighting or other equipment to be switched on or off from several different points using momentary (bell) control switches connected in parallel.

An important difference between this relay and its competitors is its safer use. There is no need to supply 220/230V to the relay inputs via the push button – just short the push button contacts. This eliminates the risk of the user being electrocuted when pressing the button

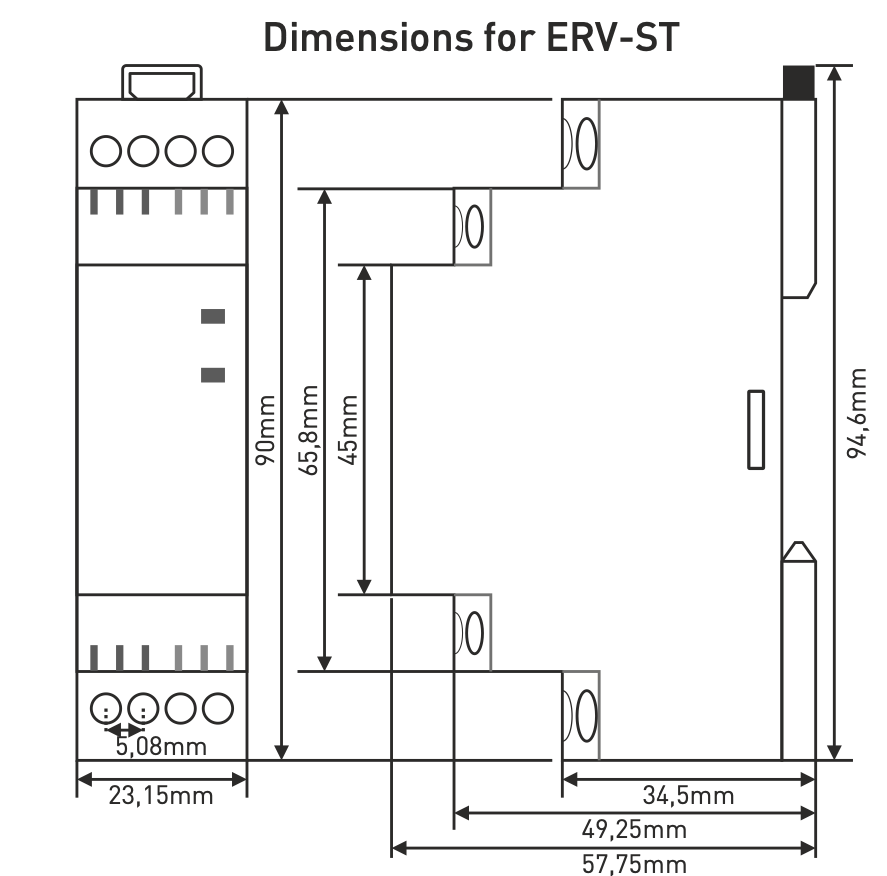

For electrical pulse/button switching usable in conjunction with any number of buttons. Dimensions 1 modular unit

With the ability to connect a large number of pushbuttons connected in parallel with two wires, cross switches can be replaced and cable layout simplified.

The pulse relay is mounted on a standard 35mm DIN rail
