Bimetal thermostat NC switching, switchable, range 0-60°C – temperature switches
281,00 Kč
66 in stock
Description
NC bimetal thermostat / temperature switches, 0-60°C, DIN rail mounted.bimetal from OPAŞ
Simple thermostat. 220(250) V AC. Bimetal sensor with type, heating function. electrical connection with 2 terminals 2,5 mm2. mounting mode on 35mm DIN rail, cross rails, on mounting panel.

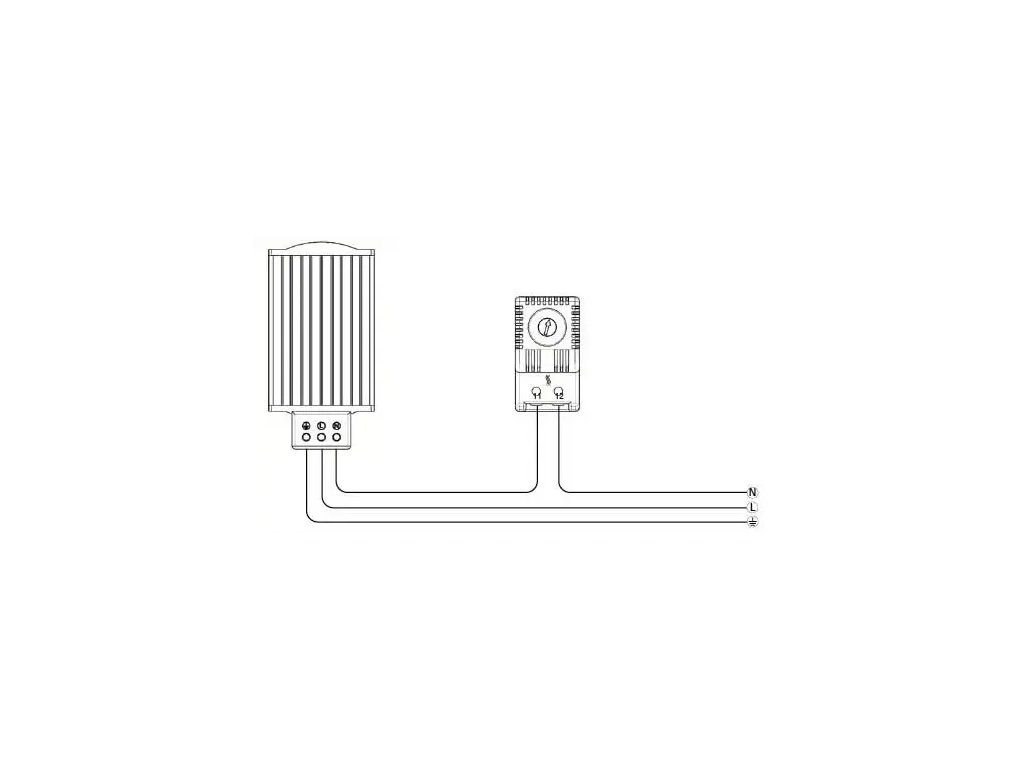

Used to connect j heating elements – heating elements, panel heaters, heated floors, heating cables, heat fans.
| Characteristics | PTOT001 |
| Contact type | NC |
| Setting range | 0-60 °C |
| Potentiometer colour | Red |
| 250V AC / 120V AC | 10 (2) A |
| Sensor type | Bimetal |
| Contact Type | Snap Action |
| Lifetime | > 100.000 |
| Electrical connection | 2-pole terminal, screw terminals |
| Plastic material | UL94 V0 ABS Flame Retardant |
| Degree of protection | IP20 |
| Operating temperature | -25 / +80 °C |
| Storage temperature | -45 / +80 °C |
| Installation | DIN rail 35mm |
| Dimensions HxWxD | 61x34x38 mm |
| Weight | 43g |
Technical data
Maximum current:10A
Rated voltage: 250 V
