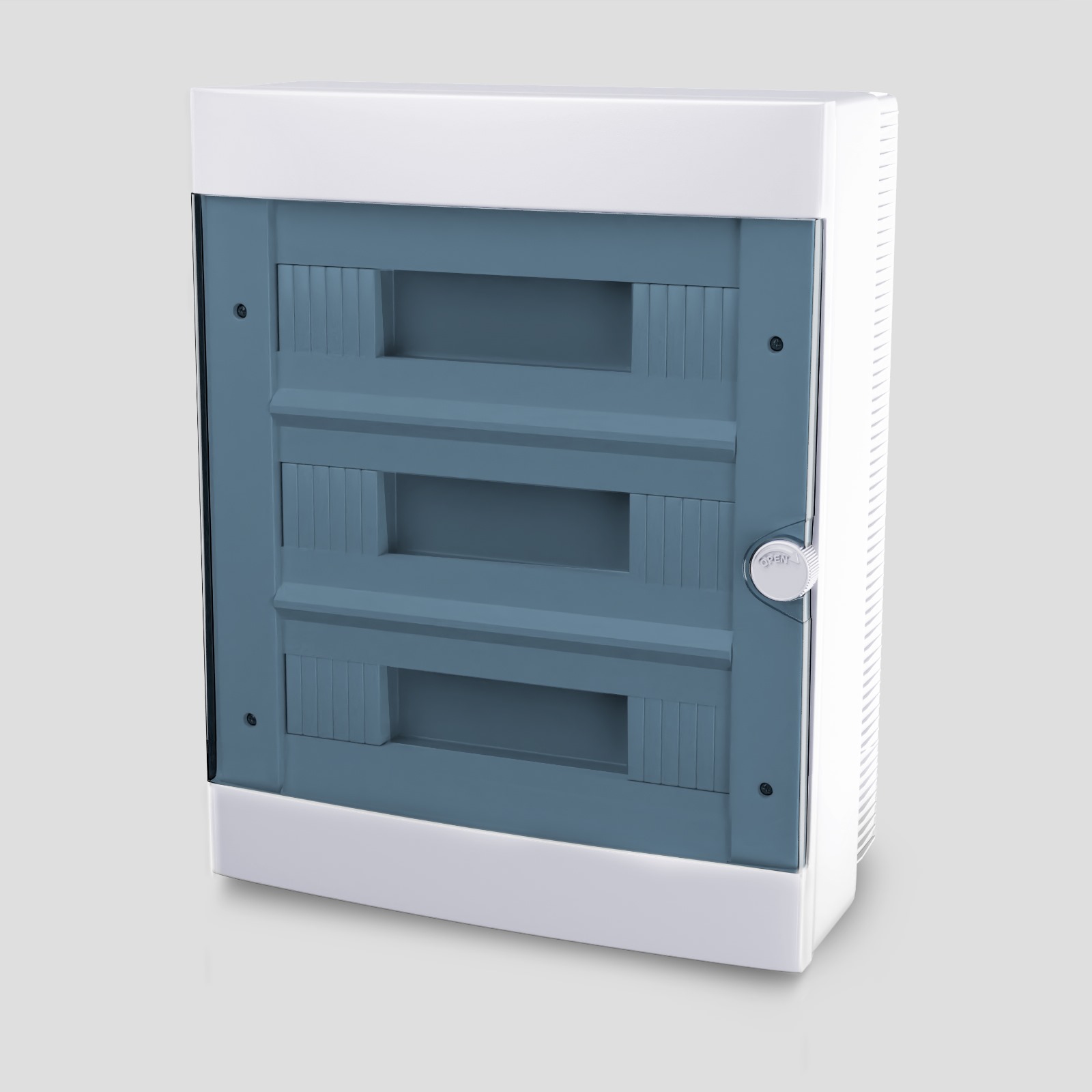

ARS Modular switchboard 36 MOD (36 fuses), surface-mounted switch cabinet, plastic, transparent door IP40, 347414

Description

Split electrical enclosure / switchboard 36 MOD / 36 fuses, IP40 (for indoor installation), ARS, made in Turkey

Switchboards made of high quality plastic are a popular choice in electrical installations due to their durability, corrosion resistance and ease of installation.

Electrical enclosure divisions are adapted for indoor use and their design allows for easy placement of appliances and electrical accessories.

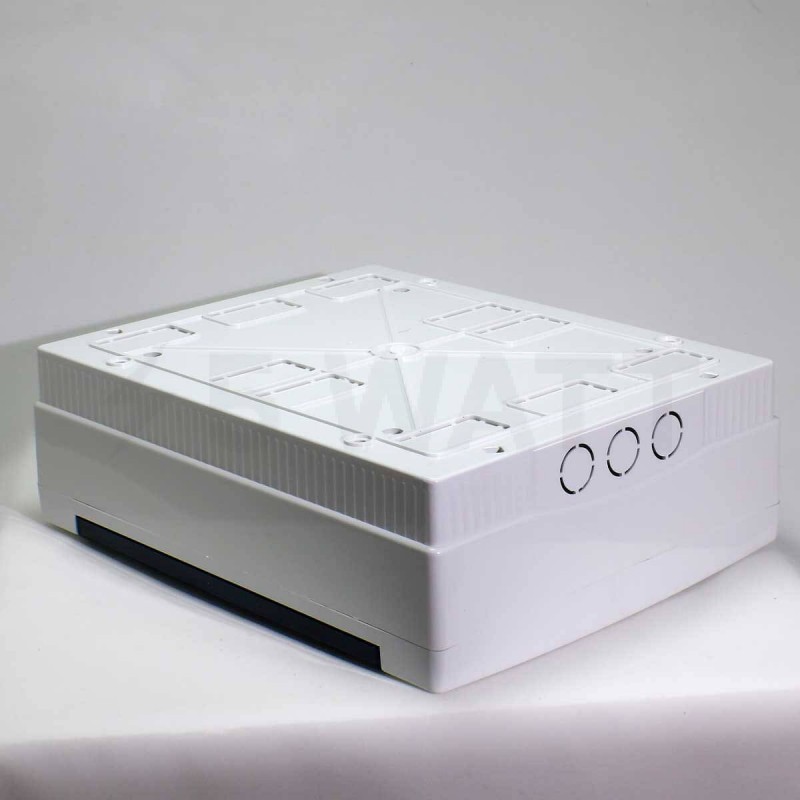

The enclosure provides safe isolation of electrical equipment from external influences and the possibility of sealing ensures protection against tampering. the mouldings in the side parts of the enclosure facilitate the insertion of wires and installation pipes, which significantly reduces time and facilitates the installation process.

Technical data:

Type.
Number of rows: 3
Number of modules in a row: 12
Voltage: 230/400 VAC
Colour: white
Material: ABS/PC
Degree of protection: IP40
Dimensions (h. × w. × d. ): 440×315×99 mm

Includes 3 metal DIN rails, a set of screws for installation as well as a neutral busbar

The plastic enclosure consists of 3 rows of 12 modules.
