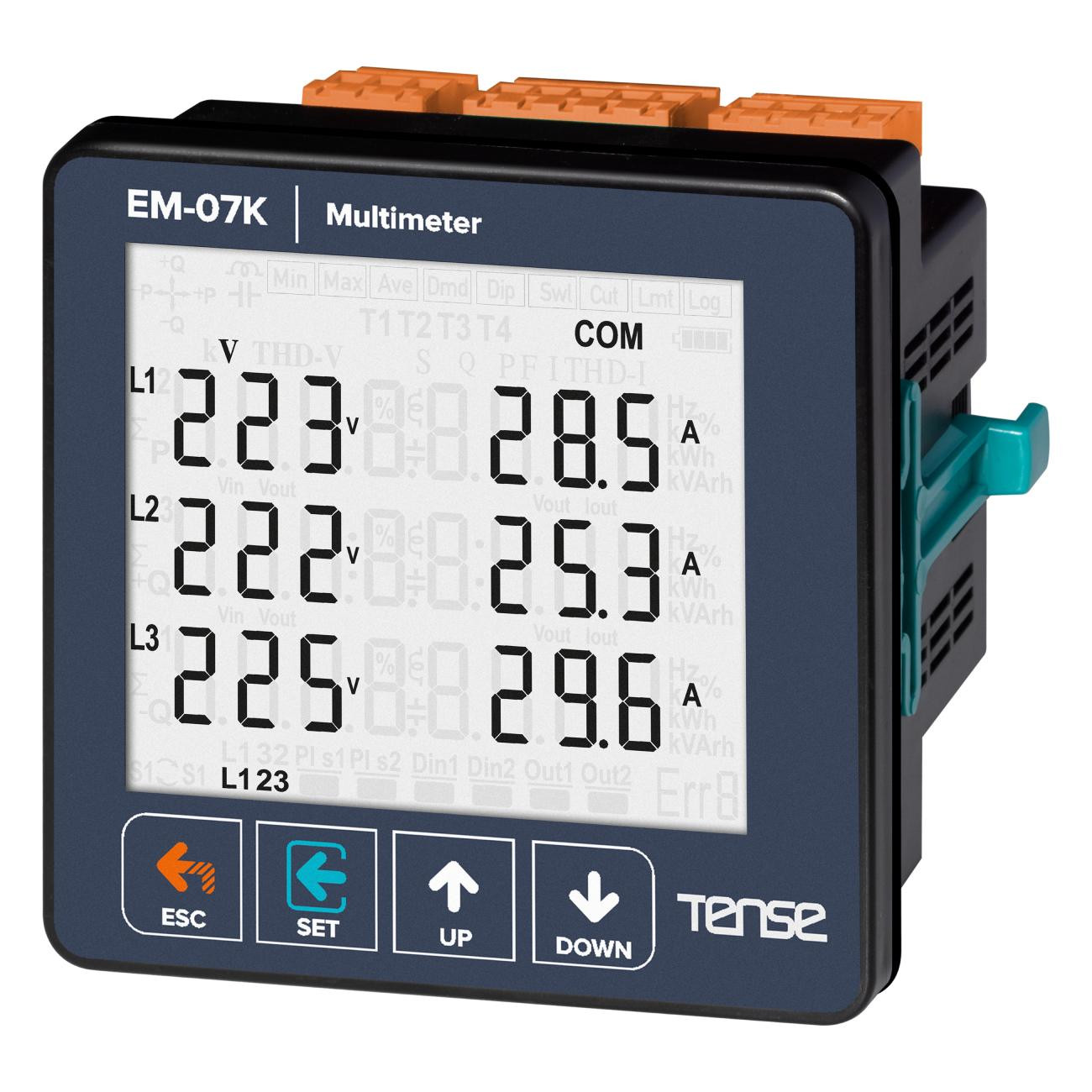

3-phase panel-mounted RS485 voltage-frequency-power-energy-current multimeter
2 530,00 Kč
Out of stock
Description
Three-phase multimeter – 3-phase multifunction digital panel meter, current, voltage, frequency and total power indicator, energy kW*h and ModBus RTU manufacturer TENSE (Turkey), panel meters.
Main advantages:
- RS485 Modbus RTU (1200-38400bps)
- 71.5 x 61.5 custom glass LCD design
- 3-phase voltage transformer and 3-phase current transformer.
- Shows V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3
- Shows the minimum, maximum and average values of V1,V2,V3,V12,V23,V31,F1,F2,F3
- Displays minimum, maximum, average and setpoints I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
- Energy Meter / Power Meter
- Protect voltage, current and frequency
- Displays phase sequence
- You can delete requirements
- Menu is password protected.

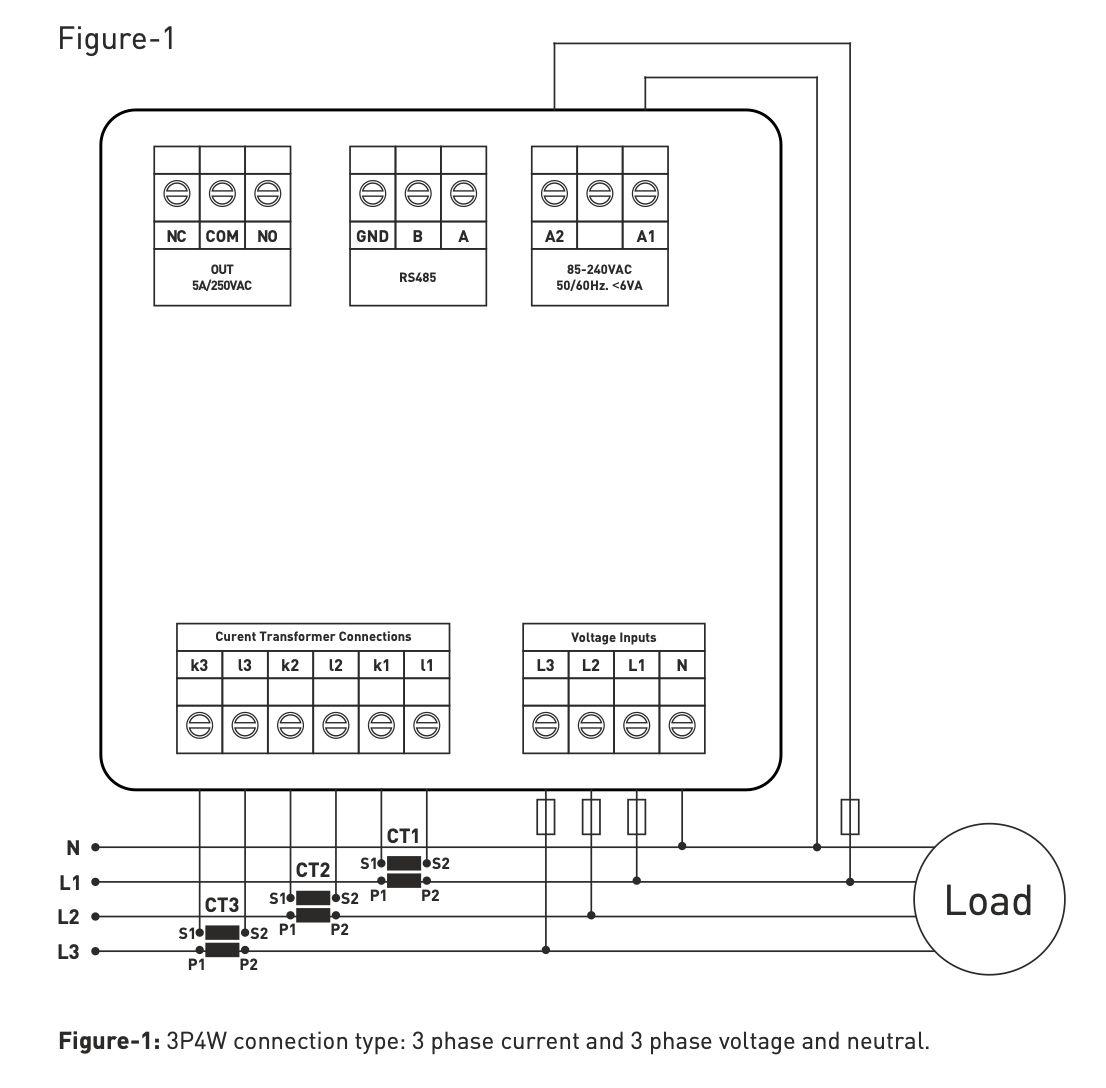

Usually this multimeter is used with current measuring transformers – 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our e-shop,
Technical data
Measurement range: 50mA – 10,000A (X/5) , 5V -300V AC, 5V – 300kV (indirect measurement)
Measurement accuracy: ±%1
Current transformer ratio: 1…2000
Voltage transformer ratio: 1…999

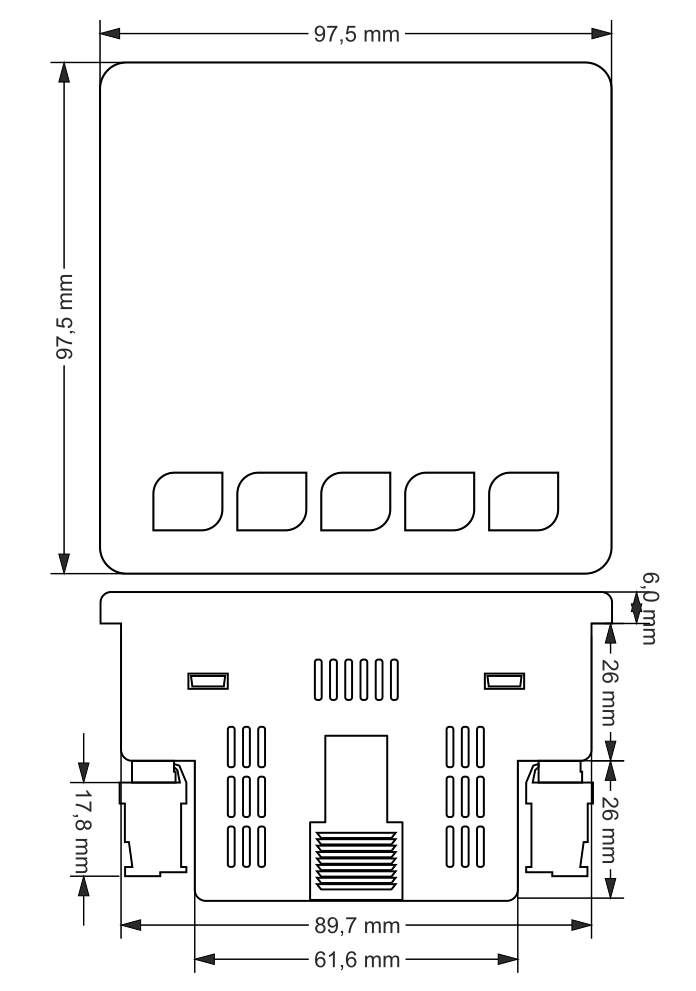

Mounting dimension: 91x91mm
Operating voltage (Un): 85V – 240V AC
Operating frequency: 50/60 Hz.
Operating power: <10VA
Operating temperature: -20 °C …. +55 °C
Connection type: Plug-in terminal
Fixing: Plug-in module: Plug-in module for connection to the mains: Clamp: clamping yoke
