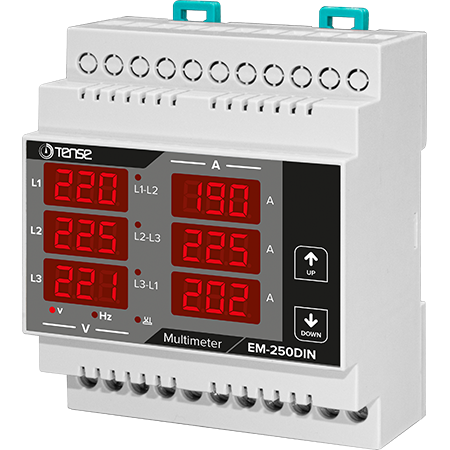

3-Phase Digital Panel Multimeter DIN Current, Voltage and Frequency Indicator

Description

3-phase DIN multimeter – multifunction digital panel meter, current, voltage and frequency display, manufacturer TENSE (Turkey), panel meters

Main advantages:

• Multifunction meter – 4 quantities (I,U(L-L,L-N,HZ);
• Measuring range:

1. (EM-06DIN), indirect measurement 5/5…9995/5A (EM-06DIN), 1A – 100A (EM-100DIN) , 2-250A (EM-250DIN);

2. Voltage – 1V-300V AC (L-N), 1V-500V AC (L-L);

3. Frequency – 40Hz-60Hz;

• Phase tracking;

• Measuring transformer included (EM-100DIN and EM-250DIN).

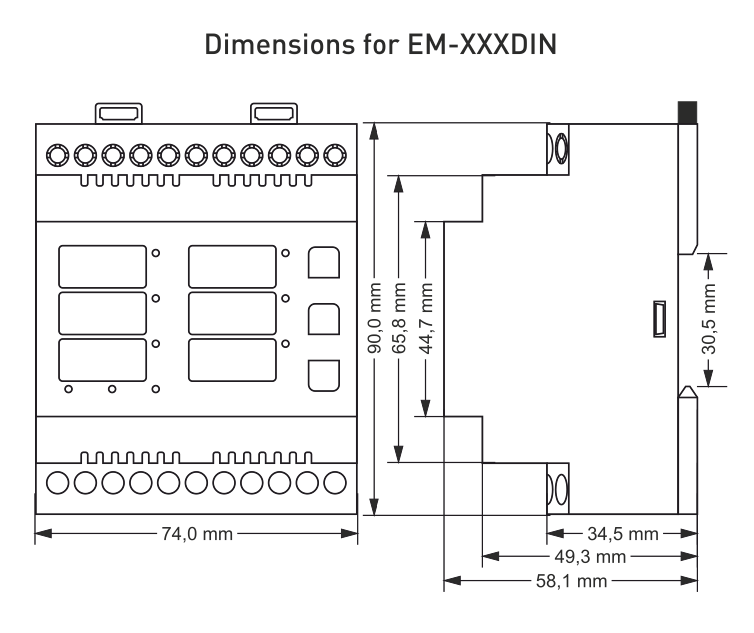

The multimeter is mounted on a standard 35mm DIN rail.

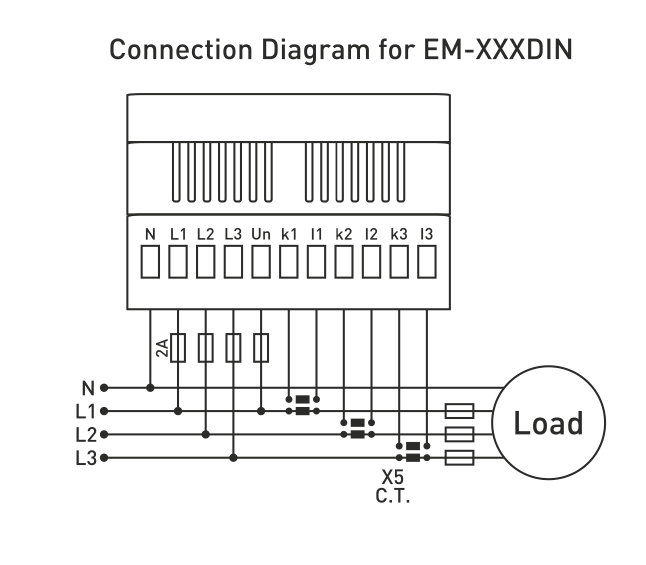

Usually this multimeter (EM-06DIN) is used with current measuring transformers – 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our e-shop
